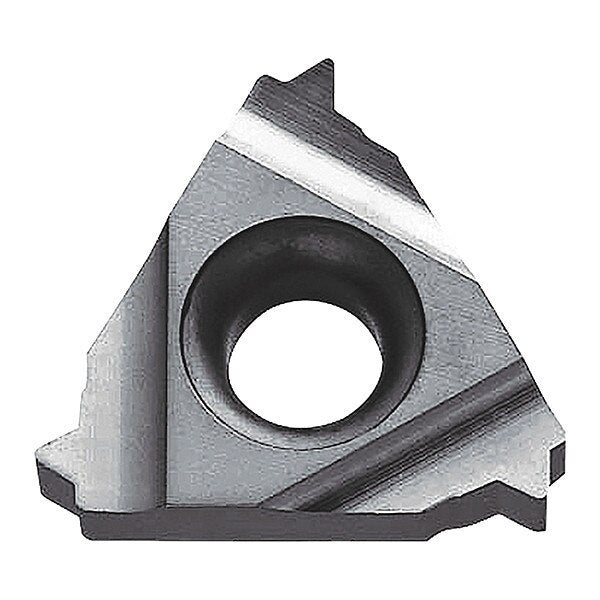

Threading Insert, 16 ER16UN TC60 Grade Uncoated Cermet

SKU
Brand Kyocera
Categories
Description Indexable Thread Turning Insert, 16, External, Cutting Direction Right Hand, UN, Primary Material Application Stainless Steel, Steel, Inscribed Circle 60 Degrees , Max. Threads per Inch 16
graingerSKU: 167AE0, mscSKU: , zoro_no: G7962834, mongo_id: 65bbe93c22d7a989a9942a86

Web Price

$30.24 / each

Qty

Minimum order: 10

Product Details

ANSI Code 16ER16UN

Chip-Breaker No

Corner Radius 0.0079 in

Country of Origin (subject to change) Japan

Cutting Direction Right Hand

Finish - Machining Bright (Uncoated)

For Toolholder KTNR12-3, KTNR1216JX-16F, KTNR16-3, KTNR1616H-16, KTNR1616JX-16F, KTNR2020H-16, KTNR2020JX-16F, KTNR2020K-16, KTNR2525M-16, KTNSR1010H-16, KTNSR1212K-16, KTNSR1616K-16, KTNSR2020K-16

Included Angle 60 Degrees

Inscribed Circle 3/8 in

Insert Holding Type Clamp or Screw

Insert Length Clamp or Screw

Insert Style 16ER

Insert Type 16ER

ISO Number 16ER16UN

Manufacturer Grade TC60

Material - Machining Cermet

Max. Threads per Inch 16

Measurement System Fractional Inch

Number of Cutting Edges 3
