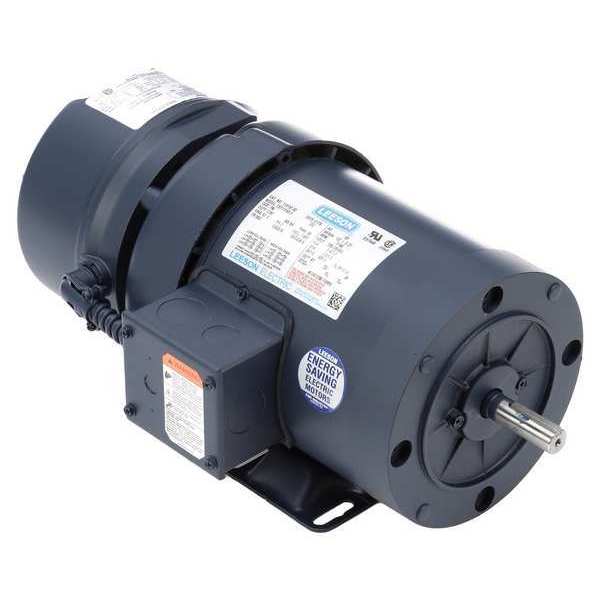

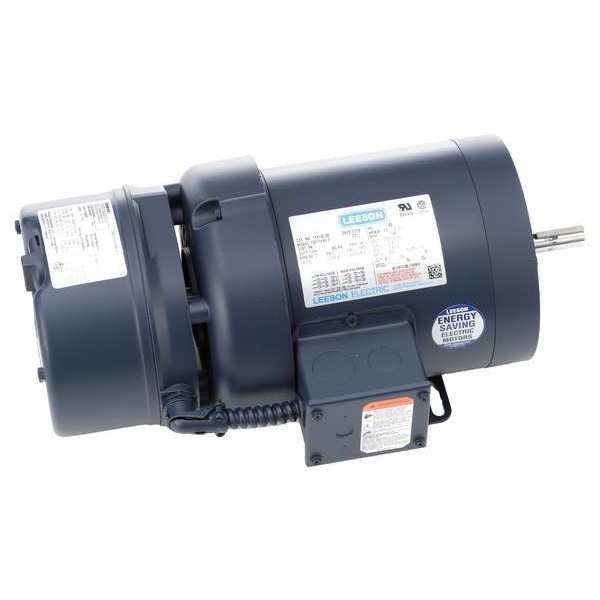

Home / 3-Phase Brake Motor, 1/2 HP, 56C Frame, 208-230/460V AC Voltage, 1,140 Nameplate RPM
3-Phase Brake Motor, 1/2 HP, 56C Frame, 208-230/460V AC Voltage, 1,140 Nameplate RPM
3-Phase Brake Motor, 1/2 HP, 56C Frame, 208-230/460V AC Voltage, 1,140 Nameplate RPM

3-Phase Brake Motor, 1/2 HP, 56C Frame, 208-230/460V AC Voltage, 1,140 Nameplate RPM

  • Leeson
  • Brake Motor, Three Phase, Motor Design 3-Phase, 1/2 HP, Nameplate RPM 1,140, No. of Speeds 1, Voltage 208-230/460V AC, 2.40 A Full Load Amps, 56C Frame, Usable @ 208V Yes, Usable @ 200V No, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection No Protection, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal

    graingerSKU: , mscSKU: , zoro_no: G602014815, mongo_id: 65bbe5993aaddbd5a9fd4dc3

Web Price
$1,651.24 / each
Qty

Product Details

Double Shield
Series 56000
6 ft-lb
Exterior
F1
United States
Continuous
56C
2.40 A
1/2
60 Hz
Key
B
No
13 15/16 in
18 mo
40 Degrees C
Brake Motor
Ball
3-Phase
Totally Enclosed Fan-Cooled
Steel
Horizontal
Rigid Base
1.15
Keyed
CW/CCW
Brake
No Protection
1,140
1
70 %
15 13/16 in
1
Three
1,701-1,800
5/8 in
1 7/8 in
CSA, UL Recognized
No
Yes
208-230/460V AC
208-230/460V AC
33 lb
