Home / 3-Phase Washdown Brake Motor, 2 HP, 145TC Frame, 208-230/460V AC Voltage, 1,745 Nameplate RPM

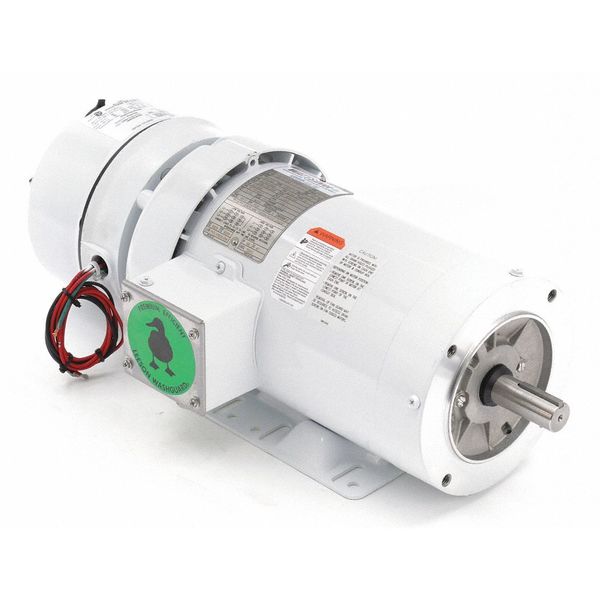

3-Phase Washdown Brake Motor, 2 HP, 145TC Frame, 208-230/460V AC Voltage, 1,745 Nameplate RPM

3-Phase Washdown Brake Motor, 2 HP, 145TC Frame, 208-230/460V AC Voltage, 1,745 Nameplate RPM

  • Leeson
  • Washdown Brake Motor, Three Phase, Motor Design 3-Phase, 2 HP, Nameplate RPM 1,745, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 2.0 A, 145TC Frame, Usable @ 208V Yes, Usable @ 200V No, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Removable Base No, Motor Shaft Rotation CCW, CW, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Rigid Base

    graingerSKU: 48ZF15, mscSKU: , zoro_no: G4448066, mongo_id: 65bbe6033aaddbd5a900025a

Web Price
$2,141.24 / each
Qty

Product Details

5 7/8 in
CC005A
Exterior
United States
Continuous
Epoxy
145TC
Epoxy Coated
2.0 A
6.0-5.8/2.9 A
NEMA Premium(R) Rated
2
60/50 Hz
10 ft.-lb. Brake
F
17 in
1 yr
40 Degrees C
Washdown
Ball
3-Phase
Totally Enclosed Fan-Cooled
Steel
Horizontal
Rigid Base
1.15
CCW, CW
None
1,745
B
1
86.5 %
19 in
1
Three
No
1,701-1,800
7/8 in
2 in
BISSC, CE, CSA, UL
No
Yes
208-230/460V AC
460V AC
200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
56 lb
