Home / AC Gearmotor, TEFC, 90RPM, 115VAC, 103 in-lb

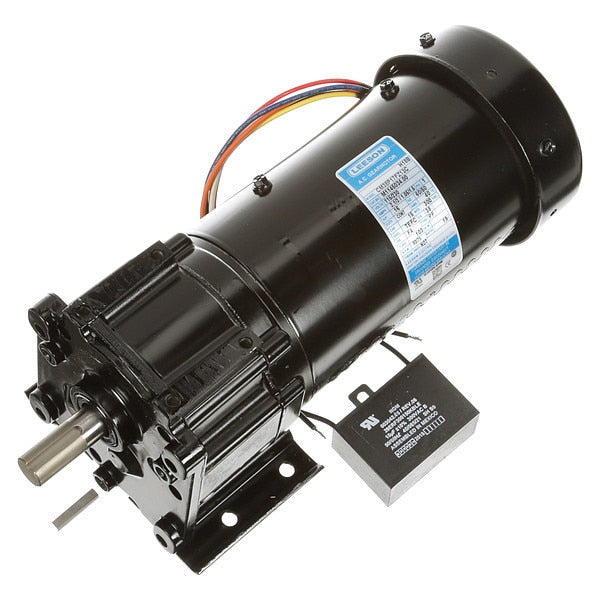

AC Gearmotor, TEFC, 90RPM, 115VAC, 103 in-lb

AC Gearmotor, TEFC, 90RPM, 115VAC, 103 in-lb

  • Leeson
  • AC Gearmotor, Number of Output Shafts 1, Motor Type Permanent Split Capacitor, Motor Enclosure Totally Enclosed Fan-Cooled, Nameplate Speed 90 RPM, Maximum Torque 103 in-lb, Overhung Load Capacity 237 ft-lb, Rotation CW/CCW, Output Shaft Height 3.5 in, Mounting Orientation Horizontal, Vertical with Shaft Down, Operating Voltage 115V AC, Gear Ratio 19:1, Output Location Left Hand, Shaft Orientation Inline, Output Shaft Type Hollow, Includes Capacitor Yes, Motor Insulation Class F
Web Price
$1,014.99 / each
Qty

Product Details

Power Transmission
Needle
Needle
Yes
United States
3.5 in
Continuous
Permanent Split Capacitor design rated for 115/230VAC 60/50 HZ input. Precision machined in-line steel gears. First stage steel helical gear followed by spur-type gears. Lubrication is permanent semi-fluid grease, Reducing possibility of leakage. Output shafts have needle bearings for high load capacities. Shafts are hardened steel. Optional conduit box available
50 Hz, 60 Hz
2.1 A
2.1/1.1 A
Steel
19:1
Helical
Totally Enclosed Fan-Cooled
Horizontal or Vertical Shaft Down
Single
CW/CCW
Parallel
Hollow with Left Output Flange
AC Gearmotor
115/230V AC
Helical Gear
60/50 Hz
Yes
0.167 hp
1/6 hp
F
1 1/16 in
15/79 in
10.63 in
Semi-Fluid Grease
40 Degrees C
103 in-lb
104 Degrees F
90 RPM
103 in-lb
Continuous
Totally Enclosed Fan-Cooled
F
Permanent Split Capacitor
1.5 in
4 in
Horizontal or Vertical Shaft Down
Horizontal, Vertical with Shaft Down
90 RPM
90 RPM
1
115V AC
Left Hand
5/8 in
3.5 in
1 1/2 in
Hollow
5.13 in
12.13 in
5.63 in
237 lb
237 ft-lb
1
Single
Yes
CW/CCW
1
5/8 in
Inline
CE, CSA, UL
None
