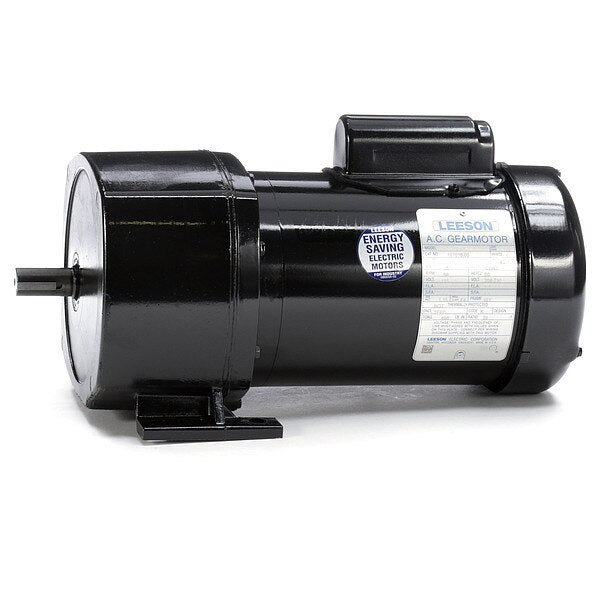

Home / AC GM, TEFC, 59RPM, 115/208-230 V, 496 in-lb
AC GM, TEFC, 59RPM, 115/208-230 V, 496 in-lb

AC GM, TEFC, 59RPM, 115/208-230 V, 496 in-lb

  • Leeson
  • AC Gearmotor, Number of Output Shafts 1, Motor Type Capacitor-Start, Motor Enclosure Totally Enclosed Fan-Cooled, Nameplate Speed 59 RPM, Maximum Torque 496 in-lb, Overhung Load Capacity 625 ft-lb, Rotation CW/CCW, Output Shaft Height 2.94 in, Mounting Orientation Horizontal, Vertical with Shaft Down, Operating Voltage 115/208-230V AC, Gear Ratio 29:1, Output Location Left Hand, Shaft Orientation Inline, Output Shaft Type Hollow, Includes Capacitor Yes, Motor Insulation Class F
Web Price
$1,474.99 / each
Qty

Product Details

Class 9
Power Transmission
Needle
Needle
Yes
United States
Continuous
All gearing designed and rated to AGMA class 9 standards and to withstand momentary shock overload of 200%, All needle bearing journals are precision ground after heat treating to provide maximum fit and finish, Capacitor start designs rated for 115/230VAC 60 HZ input, Conduit box included as standard, Gears and bearings are splash lubricated with permanent, Hardened for maximum load capability, Heavy duty industrial oil seals keep lubricant in and dirt out, Heavy-Duty Gear Oil, High carbon alloy output shaft provides maximum strength and rigidity, Oversized output bearings for greater overhung load capacity and long life, Precision machined gearing, Rugged die cast Aluminium gear housing for maximum gear and bearing support
60 Hz
8.8 A
8.8/4.4 A
Die Cast Aluminum
29:1
AGMA Class 9
Totally Enclosed Fan-Cooled
Horizontal or Vertical Shaft Down
Single
CW/CCW
Parallel
Hollow with Left Output Flange
AC Gearmotor
115/230V AC
AGMA Class 9
Die Cast Aluminum
Die Cast Aluminum
60 Hz
Conduit Box
Yes
Yes
0.5 hp
1/2 hp
F
1 1/16 in
1 in
15/79 in
12.67 in
Heavy Duty Gear Oil
40 Degrees C
496 in-lb
104 Degrees F
59 RPM
496 in-lb
Continuous
Totally Enclosed Fan-Cooled
F
Capacitor-Start
2.5 in
7.13 in
Horizontal or Vertical Shaft Down
Horizontal, Vertical with Shaft Down
59 RPM
59 RPM
1
115/208-230V AC
Left Hand
3/4 in
2.94 in
1 1/2 in
Hollow
7.69 in
14.17 in
8.13 in
625 lb
625 ft-lb
1
Single
Yes
CW/CCW
1.15
3/4 in
Inline
CSA, UL
None
