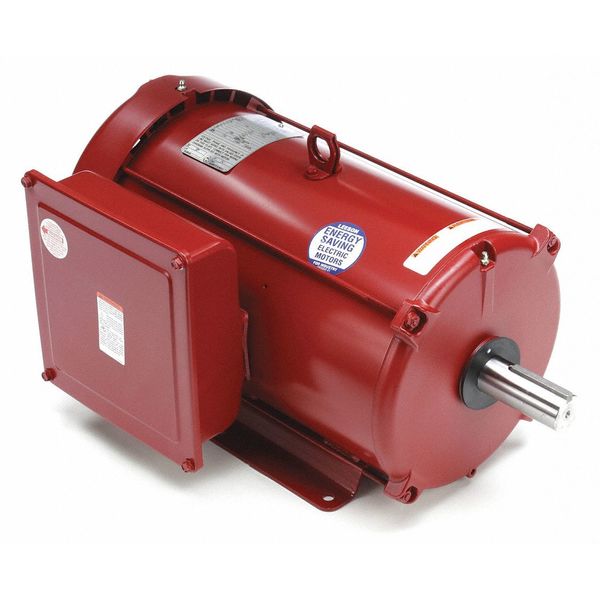

Home / Farm Duty Motor, Capacitor-Start/Run, 10 HP, 230V AC, 1,740 Nameplate RPM, 215T Frame

Farm Duty Motor, Capacitor-Start/Run, 10 HP, 230V AC, 1,740 Nameplate RPM, 215T Frame

SKU
Brand Leeson
Categories
Description Farm Duty Motor, Single Phase, Motor Design Capacitor-Start/Run, 10 HP, Nameplate RPM 1,740, No. of Speeds 1, Voltage 230V AC, Full Load Amps 40.0 A, 215T Frame, Usable @ 208V No, Usable @ 200V No, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection Manual, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal
graingerSKU: null, mscSKU: null, zoro_no: G4608381, mongo_id: 65bbe5df3aaddbd5a9ff1a69

Web Price

$2,455.39 / each

Qty

Product Details

Capacitor Required Yes

Country of Origin (subject to change) Mexico

Duty Continuous

Duty Cycle Continuous

Finish Enamel

Frame 215T

Frame Material Rolled steel

Full Load Amps 40.0 A

HP_ 10

Hz_ 60 Hz

Ins. Class F

Item - Farm Duty Motors Farm Duty Motor

Length Less Shaft 17 5/16 in

Manufacturers Warranty Length 1 yr

Max. Ambient Temp. 40 Degrees C

Max. Ambient Temperature 40 Degrees C

Motor Application Farm Duty

Motor Bearings Ball

Motor Design Capacitor-Start/Run

Motor Efficiency Group Standard Efficient

Motor Enclosure Design Totally Enclosed Fan-Cooled

Motor Frame Material Steel

Motor Mounting Position Horizontal

Motor Mounting Type Rigid Base

Motor Service Factor 1.15

Motor Shaft Design Keyed

Motor Shaft Rotation CW/CCW

Motor Sub Application High Torque

Motor Thermal Protection Manual

Nameplate RPM 1,740

No. of Speeds 1

Nominal Efficiency 86.5 %

Overall Length 20 11/16 in

Package Quantity 1

Phase Single

RPM Range 1,701-1,800

Shaft Dia. 1 3/8 in

Shaft Length 3 3/8 in

Standards CSA (LR2025), UL (E49747)

Usable @ 200V No

Usable @ 208V No

Voltage 230V AC

Voltage Compatibility 115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC

Weight 155 lb
