General Purpose Motors, 20 HP, 60 Hz

General Purpose Motors, 20 HP, 60 Hz

  • Leeson

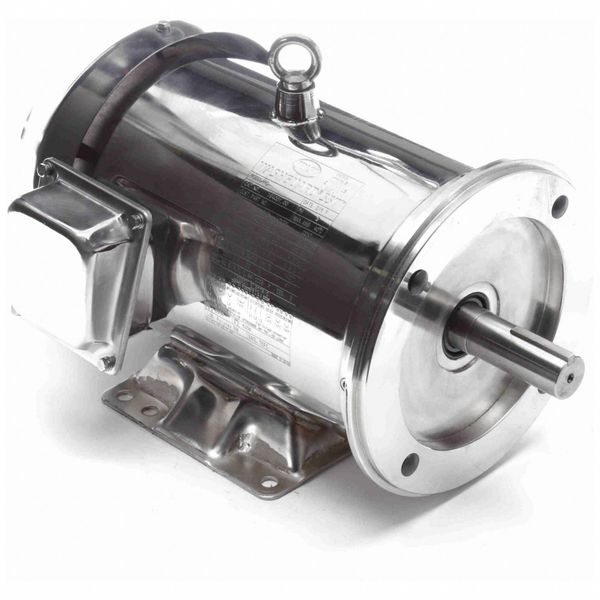

  • Washdown Motor, Three Phase, Motor Design 3-Phase, 20 HP, Nameplate RPM 1,770, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 52-47/23.6 A, 256TC Frame, Usable @ 208V Yes, 60 Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal, Inverter Rating 4:1

    graingerSKU: null, mscSKU: null, zoro_no: G606626656, mongo_id: 65bbe5df3aaddbd5a9ff1a66

Web Price
$14,207.49 / each
Qty

Product Details

13.98 in
China
Continuous
Unfinished
256TC
52-47/23.6 A
20
60
4:1
40 Degrees C
Washdown
Ball
3-Phase
Totally Enclosed Fan Cooled
Stainless Steel
Horizontal
Rigid Base
1.15
Threaded
CW/CCW
None
1,770
B
1
93 %
25 in
1
Three
1,701-1,800
1 5/8 in
CE Certified, CSA Certified, UL Listed
Yes
208-230/460V AC
190/380, 208-230/460
358 lb
