Home / Motor, 2 HP, 1745, 56C, 208-230/460V

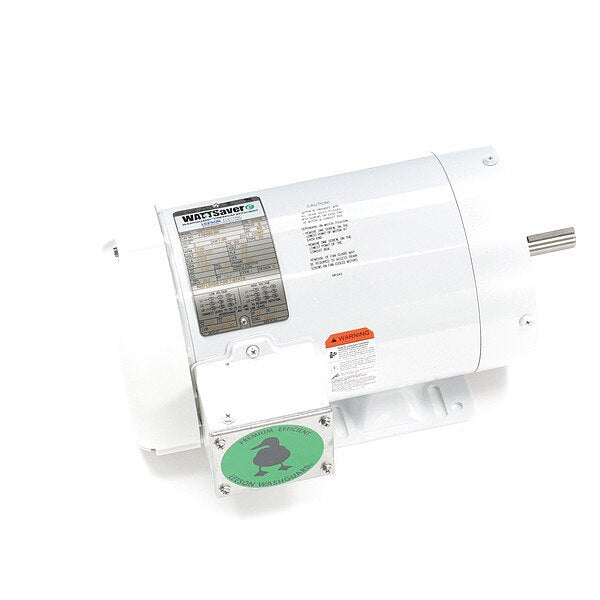

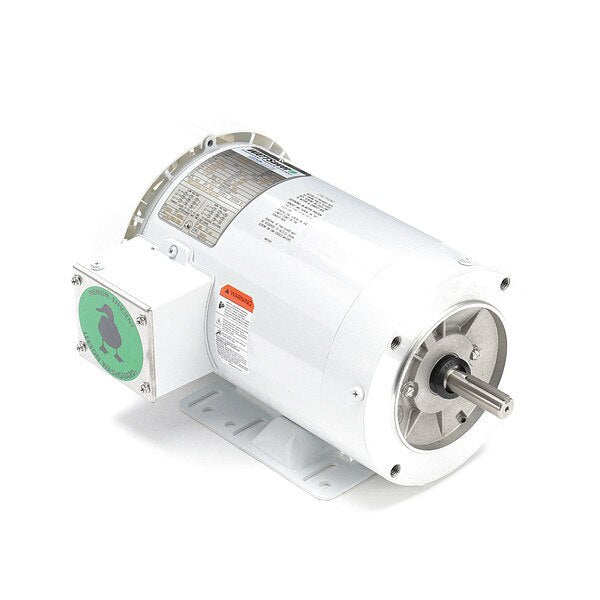

Motor, 2 HP, 1745, 56C, 208-230/460V
Motor, 2 HP, 1745, 56C, 208-230/460V

Motor, 2 HP, 1745, 56C, 208-230/460V

  • Leeson
  • Washdown Motor, Three Phase, Motor Design 3-Phase, 2 HP, Nameplate RPM 1,745, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 6.0-5.8/2.9 A, 56C Frame, Usable @ 208V Yes, Usable @ 200V No, 60 Hz, Motor Service Factor 1.2, Motor Thermal Protection Manual, Ins. Class F, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design B, Removable Base No, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Face/Base
Web Price
$1,219.99 / each
Qty

Product Details

Shaft Shields
7.3 in
5 7/8 in
Exterior
United States
(1) Drain Plugs In Conduit Box, (1) Drain Plugs In Each End Bell
Continuous
Unfinished
56C
6.0-5.8/2.9 A
2
60
F
11 15/16 in
1 yr
104 Degrees F
Washdown
Ball
3-Phase
Totally Enclosed Fan-Cooled
Rolled Steel
Horizontal
Face/Base
1.2
Keyed
CW/CCW
Manual
1,745
B
1
86.5 %
13 7/8 in
1
Three
No
1,701-1,800
5/8 in
1 7/8 in
Stainless Steel
CE, CSA Certified, UL Recognized, USDA
No
Yes
208-230/460V AC
200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
38 lb
