Home / Motor, 2 HP, 1745, 90L, 208-230/460V

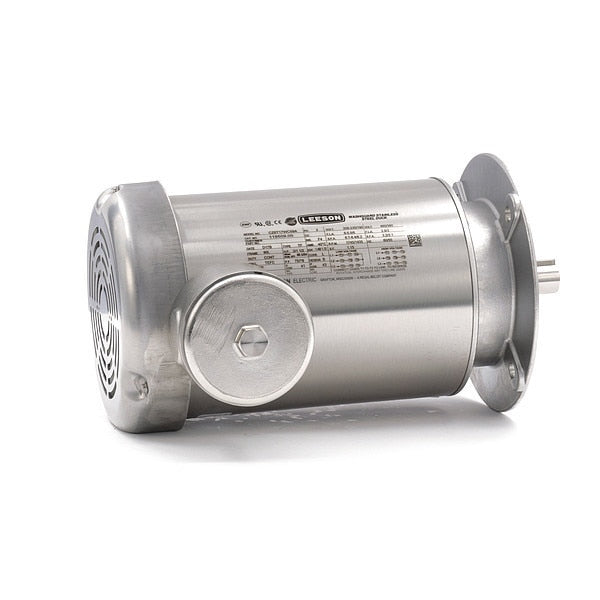

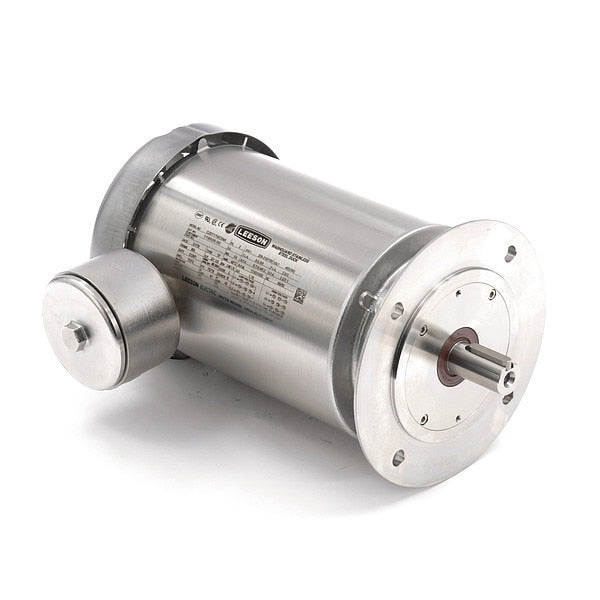

Motor, 2 HP, 1745, 90L, 208-230/460V
Motor, 2 HP, 1745, 90L, 208-230/460V

Motor, 2 HP, 1745, 90L, 208-230/460V

  • Leeson
  • Washdown Motor, Three Phase, Motor Design 3-Phase, 2 HP, Nameplate RPM 1,745, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 6.0-5.8/2.9 A, 90L Frame, Usable @ 208V Yes, Usable @ 200V No, 60 Hz, Motor Service Factor 1.2, Motor Thermal Protection T-Stat, Ins. Class F, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design B, Removable Base Yes, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Face
Web Price
$2,676.24 / each
Qty

Product Details

Shaft Shields
7.3 in
6 7/16 in
Exterior
United States
(1) Drain Plugs In Conduit Box
Continuous
Stainless Steel
Unfinished
90L
6.0-5.8/2.9 A
2
60
F
6:1
11 7/8 in
1 yr
104 Degrees F
Washdown
Ball
3-Phase
Totally Enclosed Fan-Cooled
Stainless Steel
Horizontal
Face
1.2
Keyed
CW/CCW
T-Stat
1,745
B
1
86.5 %
13 13/16 in
1
Three
Yes
1,701-1,800
15/16 in
1 3/8 in
Stainless Steel
CE, CSA Certified, UL Recognized
No
Yes
208-230/460V AC
200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
54 lb
