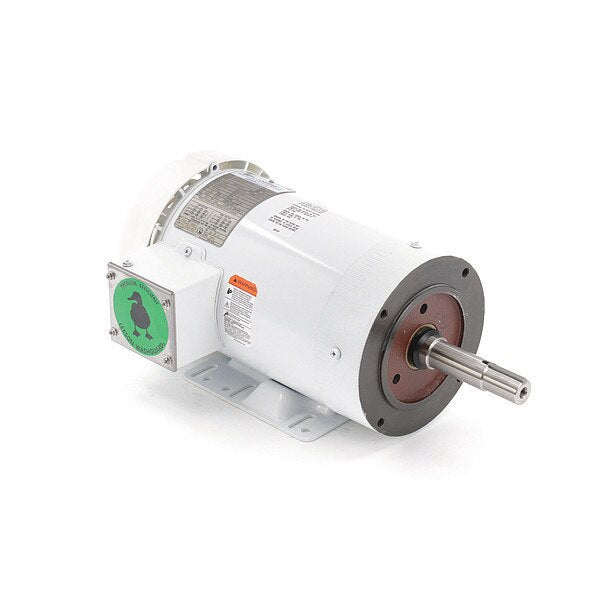

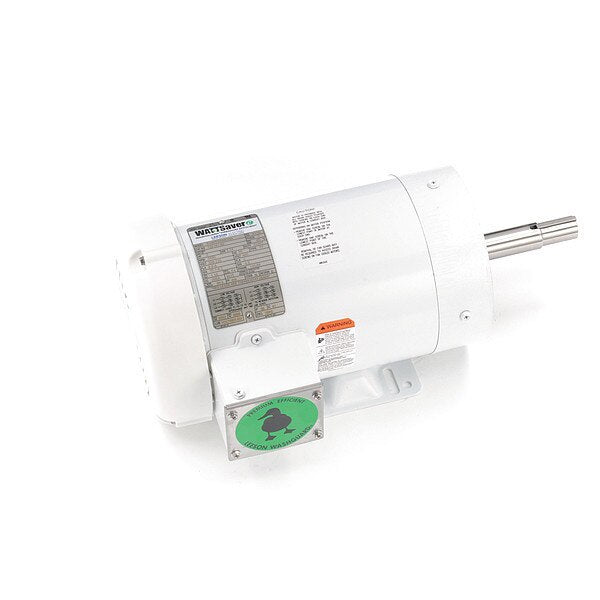

Home / Motor, 3 HP, 3490,145JM, 208-230/460V
Motor, 3 HP, 3490,145JM, 208-230/460V
Motor, 3 HP, 3490,145JM, 208-230/460V

Motor, 3 HP, 3490,145JM, 208-230/460V

  • Leeson
  • Washdown Motor, Three Phase, Motor Design 3-Phase, 3 HP, Nameplate RPM 3,490, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 8.8-8.0/4.0 A, 145JM Frame, Usable @ 208V Yes, Usable @ 200V No, 60 Hz, Motor Service Factor 1.2, Motor Thermal Protection T-Stat, Ins. Class F, Max. Ambient Temp. 40 Degrees F, Duty Cycle Continuous, NEMA Design B, Removable Base No, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Rigid Base
Web Price
$1,278.74 / each
Qty

Product Details

Shaft Shields
7.3 in
5 7/8 in
Exterior
United States
(1) Drain Plugs In Conduit Box, (1) Drain Plugs In Each End Bell
Continuous
Unfinished
145JM
8.8-8.0/4.0 A
3
60
F
12 3/16 in
1 yr
40 Degrees F
Washdown
Ball
3-Phase
Totally Enclosed Fan-Cooled
Steel
Horizontal
Rigid Base
1.2
Keyed
CW/CCW
T-Stat
3,490
B
1
86.5 %
16 7/16 in
1
Three
No
3,001-3,600
7/8 in
4 3/16 in
CE, CSA Certified, UL Recognized, USDA Approved
No
Yes
208-230/460V AC
200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
52 lb
