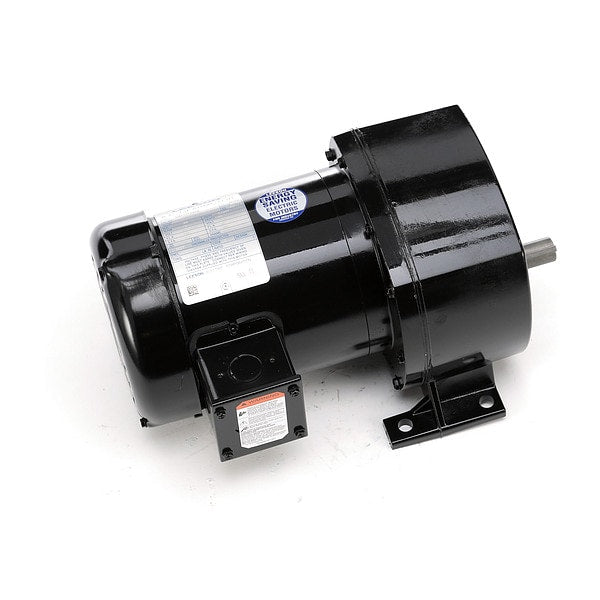

Parallel Shaft Gearmotors, 208-230/460V

Parallel Shaft Gearmotors, 208-230/460V

  • Leeson
  • AC Gearmotor, Number of Output Shafts 1, Motor Type 3-Phase, Motor Enclosure Totally Enclosed Fan-Cooled, Nameplate Speed 18 RPM, Maximum Torque 1,089 in-lb, Overhung Load Capacity 700 ft-lb, Rotation CW/CCW, Output Shaft Height 2.94 in, Mounting Orientation Horizontal, Vertical with Shaft Down, Operating Voltage 208-230/460V AC, Gear Ratio 95:1, Brake Type None, Shaft Orientation Parallel, Includes Capacitor Yes, Motor Insulation Class F, Includes Junction/Conduit Box Yes

    graingerSKU: , mscSKU: , zoro_no: G004853067, mongo_id: 65bbe6c13aaddbd5a904e94a

Web Price
$1,454.99 / each
Qty

Product Details

Needle
Needle
None
Yes
United States
12.92 in
Continuous
All gearing designed and rated to AGMA class 9 standards and to withstand momentary shock overload of 200%, All needle bearing journals are precision ground after heat treating to provide maximum fit and finish, Conduit box included as standard, Gears and bearings are splash lubricated with permanent, Hardened for maximum load capability, Heavy duty industrial oil seals keep lubricant in and dirt out, Heavy-Duty Gear Oil, High carbon alloy output shaft provides maximum strength and rigidity, Oversized output bearings for greater overhung load capacity and long life, Precision machined gearing, Rugged die cast Aluminium gear housing for maximum gear and bearing support
60 Hz
1.6/0.8
1.6/0.80 A
Die Cast Aluminum
95:1
None
Totally Enclosed Fan-Cooled
Horizontal or Vertical Shaft Down
Three
CCW
Parallel
Single
AC Gearmotor
208-230/460V
Die Cast Aluminum
Die Cast Aluminum
60 Hz
Conduit Box
Yes
Yes
0.33 hp
33/100 hp
F
1 1/16 in
1 in
0.19 Square x 1
Square
15/79 in
11.42 in
Heavy Duty Gear Oil
40 Degrees C
1,089 lb-in
104 Degrees F
18 RPM
1,089 in-lb
Continuous
Totally Enclosed Fan-Cooled
F
3-Phase
2.5 in
7.13 in
Horizontal or Vertical Shaft Down
Horizontal, Vertical with Shaft Down
18 RPM
18 RPM
1
208-230/460V AC
3/4 in
2.94 in
1 1/2 in
6.6 in
12.92 in
8.13 in
700 lb
700 ft-lb
1
Three
CW/CCW
Heavy Duty Industrial
Heavy Duty Industrial
1.15
3/4 in
1.5 in
Parallel
CSA, UL
1,089 in-lb
None
