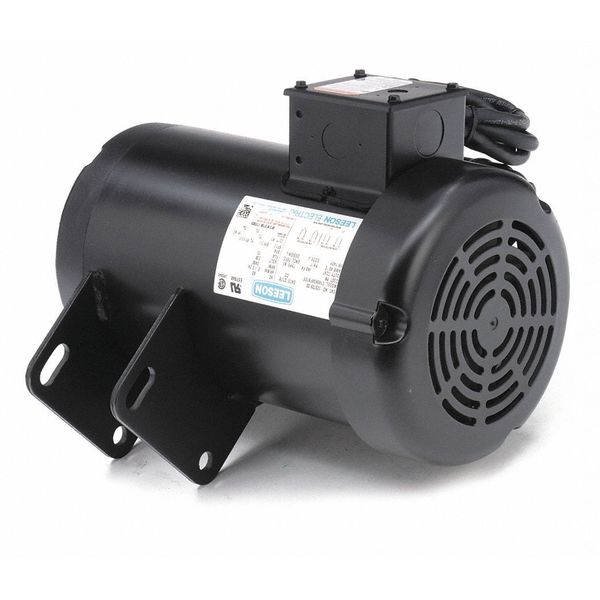

Saw Motor, 3 HP, 3450 RPM, 230V

SKU
Brand Leeson
Categories
Description Table Saw Motor, Single Phase, Motor Design Capacitor-Start, 3 HP, Nameplate RPM 3,450, No. of Speeds 1, 230V AC Voltage, Full Load Amps 13.0, 145Y Frame, Usable @ 208V No, Usable @ 200V No, 60 Hz, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CCWSE, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Face, Motor Mounting Position Horizontal, Motor Frame Material Steel
graingerSKU: 1XEN1, mscSKU: , zoro_no: G0454203, mongo_id: 65bbe9a422d7a989a996ada8

Web Price

$1,137.49 / each

Qty

Product Details

Ambient Temperature 40 Degrees C

Conduit Box Location Exterior

Conduit Box Position F1

Cord Length 54 in

Country of Origin (subject to change) United States

Duty Cycle Continuous

Extended Thru-Bolts No

Frame 145Y

Full Load Amps 13.0

HP_ 3

Hz_ 60

Includes 54 in Long Cord

Ins. Class F

Length Less Shaft 11 1/8 in

Max. Ambient Temp. 40 Degrees C

Motor Application Power Tool

Motor Bearings Ball

Motor Design Capacitor-Start

Motor Enclosure Design Totally Enclosed Fan-Cooled

Motor Frame Material Steel

Motor Mounting Position Horizontal

Motor Mounting Type Face

Motor Service Factor 1

Motor Shaft Design Keyed

Motor Shaft Rotation CCWSE

Motor Thermal Protection None

Nameplate RPM 3,450

No. of Speeds 1

Nominal Efficiency 81.5 %

Number of Shafts 1

Overall Length 12 7/8 in

Package Quantity 1

Phase Single

RPM Range 3,001-3,600

Shaft Dia. 3/4 in

Shaft Length 1 3/4 in

Standards CSA Certified, UL Recocgnized

Usable @ 200V No

Usable @ 208V No

Voltage 230V AC

Voltage Compatibility 115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC

Weight 55 lb
