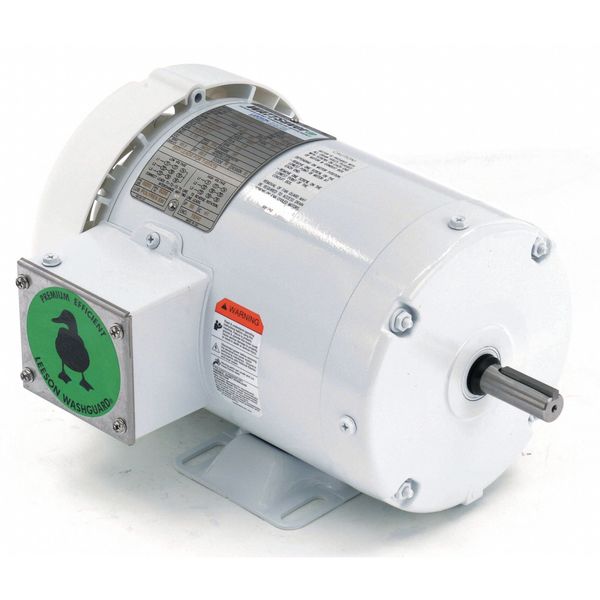

Washdown Motor, 1 HP, 143JM Frame

Washdown Motor, 1 HP, 143JM Frame

  • Leeson
  • Washdown Motor, Three Phase, Motor Design 3-Phase, 1 HP, Nameplate RPM 1,760, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 3.2/1.6 A, 143JM Frame, Usable @ 208V Yes, Usable @ 200V No, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CCW, CW, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal

    graingerSKU: null, mscSKU: null, zoro_no: G7111627, mongo_id: 65bbe6243aaddbd5a900e6d9

Web Price
$827.49 / each

Product Details

7.38 in
5 7/8 in
CC005A
380 Aluminum Alloy with Buna-N Gasket
Exterior
United States
(4) Shaft End, (4) Lead End, (2) In Conduit Box
Continuous
Continuous
Cast Iron
Cast Iron
Painted
143JM
Rolled steel
3.2/1.6 A
NEMA Premium(R) Rated
1
60 Hz
F
No
10 5/16 in
1 yr
40 Degrees C
Washdown
Ball
3-Phase
Totally Enclosed Fan-Cooled
Steel
Horizontal
Rigid Base
1.15
Keyed
CCW, CW
Crop Dryer
None
1,760
B
1
85.5 %
12 1/4 in
1
Three
1,701-1,800
5/8 in
1 15/16 in
Stainless Steel
BISSC Approved, CE, CSA Certified, UL Recognized, USDA Approved
No
Yes
208-230/460V AC
200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
57 lb
