Home / Washdown Motor, 5 HP, Rigid Base, 60 Hz

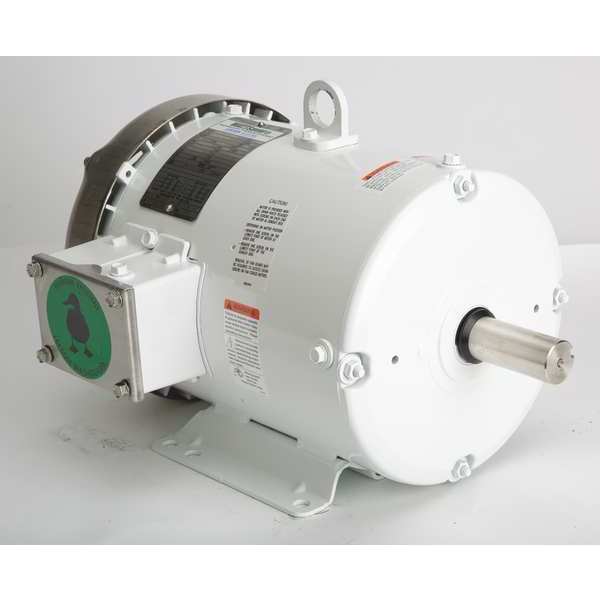

Washdown Motor, 5 HP, Rigid Base, 60 Hz

Washdown Motor, 5 HP, Rigid Base, 60 Hz

  • Leeson
  • Washdown Brake Motor, Three Phase, Motor Design 3-Phase, 5 HP, Nameplate RPM 1,760, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 12.6/6.3 A, 184T Frame, Usable @ 208V No, Usable @ 200V No, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CWSE, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal

    graingerSKU: 48ZF87, mscSKU: , zoro_no: G4609206, mongo_id: 65bbe7d19a749db82275ab2f

Web Price
$1,937.49 / each
Qty

Product Details

General Purpose
8.38 in
CC005A
Exterior
Mexico
Continuous
Painted
184T
Rolled steel
12.6/6.3 A
NEMA Premium(R) Rated
5
60 Hz
F
11 1/8 in
1 yr
40 Degrees C
Washdown
Ball
3-Phase
Totally Enclosed Fan-Cooled
Steel
Horizontal
Rigid Base
1.15
Keyed
CWSE
None
1,760
B
1
89.5 %
13 15/16 in
1
Three
1,701-1,800
1 1/8 in
2 3/4 in
BISSC Approved, CE, CSA Certified, UL Recognized, USDA Approved
No
No
230/460V AC
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
90 lb
