Home / Washdown Motor, 7-1/2 HP, 3-Phase, 60/50 Hz

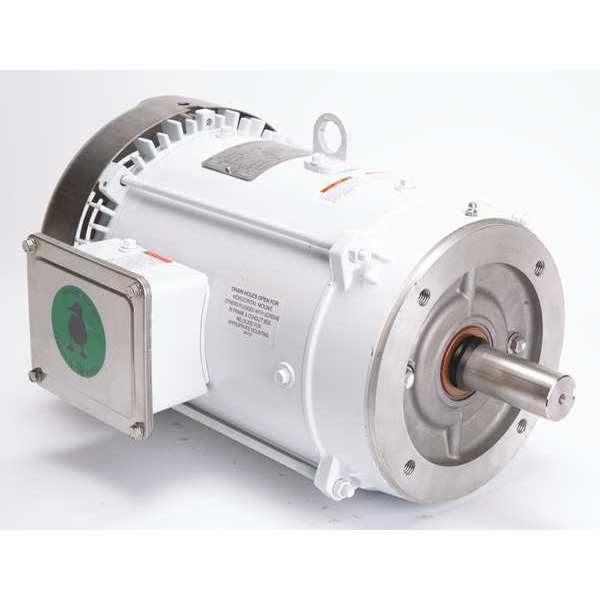

Washdown Motor, 7-1/2 HP, 3-Phase, 60/50 Hz

Washdown Motor, 7-1/2 HP, 3-Phase, 60/50 Hz

  • Leeson
  • Washdown Brake Motor, Three Phase, Motor Design 3-Phase, 7 1/2 HP, Nameplate RPM 1,765, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 19.6/9.8 A, 213TC Frame, Usable @ 208V No, Usable @ 200V No, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CWSE, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Face, Motor Mounting Position Horizontal

    graingerSKU: 48ZG40, mscSKU: , zoro_no: G4702321, mongo_id: 65bbea4122d7a989a99a4319

Web Price
$2,671.16 / each
Qty

Product Details

General Purpose
11.5 in
7 1/4 in
CC005A
Exterior
Mexico
Continuous
Painted
213TC
Rolled steel
19.6/9.8 A
NEMA Premium(R) Rated
7 1/2
60 Hz
F
16 5/8 in
1 yr
40 Degrees C
Washdown
Ball
3-Phase
Totally Enclosed Fan-Cooled
Steel
Horizontal
Face
1.15
Keyed
CWSE
None
1,765
B
1
91.7 %
18 3/4 in
1
Three
1,701-1,800
1 3/8 in
3 1/8 in
BISSC Approved, CE, CSA Certified, UL Recognized
No
No
230/460V AC
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
135 lb
