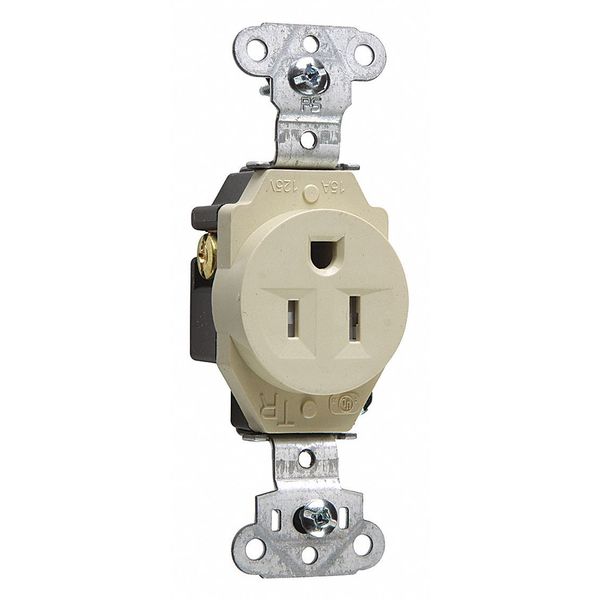

Receptacle, 15 A Amps, 125V AC, Flush Mount, Single Outlet, 5-15R, Ivory

SKU
Brand Legrand
Categories
Description Receptacle, Connection Orientation Straight, Current Rating 15 A, Grounding Grounded, Housing Color Ivory, Housing Material Nylon (Face), PVC (Back Body), Mount Type Flush, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Receptacle Type Single, Resistance Properties Corrosion Resistant, Tamper Resistant, Standards cULus Listed, UL 498, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Method Back, Side

Web Price

$6.94 / each

Product Details

Additional Electrical Protection Standard Protection

Additional Electrical Protections Standard Protection

Amperage 15 A

Amps - Plugs and Receptacles 15

Amps - Plugs and Receptacles 15 A

Application Environment Commercial

Application Sector Commercial

Color Ivory

Color - Plugs and Receptacles Ivory

Connection Back and side wire

Connection Orientation Straight

Contact Material Brass

Corrosion Resistant Yes

Country of Origin (subject to change) Mexico

Current Rating 15 A

Dielectric Strength Withstands 2000V minimum

Environmental Conditions Flammability: UL94 V2

Face Diameter 1.4 in

Face Plate Height 2 in

Face Plate Width 1.3 in

Grade Federal Specification

Grounding Grounded

Horsepower Rating 1/2 hp

Housing Color Ivory

Housing Material Nylon (Face), PVC (Back Body)

HP_ 1/2 hp

Includes Auto-Ground Clip, Mounting Hardware

Includes Mounting Hardware Yes

Is Tamper-Resistant Yes

Item - Plugs and Receptacles Receptacle

Key Resistance Properties Corrosion Resistant, Tamper Resistant

Market Commercial, Residential

Material Nylon

Maximum Operating Temperature 140 Degrees F

Maximum Wire Size 10 AWG

Minimum Operating Temperature -40 Degrees F

Minimum Wire Size 14 AWG

Mount Hole Center-to-Center Height 3.7 in

Mount Type Flush

Mounting Type - Plugs and Receptacles Flush

NEMA Configuration 5-15

Nema Rating 5-15R

NEMA Receptacle Configuration 5-15R

NEMA Receptacle Configuration - Plugs and Receptacles 5-15R

Number of Gangs 1

Number of Poles 2

Number of Poles & Wires 2 Pole / 3 Wire

Number of Wires 3

Outlet Type - Plugs and Receptacles Single

Package Quantity 1

Phase Single

Power Indicator No

Primary Resistance Properties Corrosion Resistant - Tamper Resistant - 15 A, Tamper Resistant - Corrosion Resistant - 15 A, Tamper Resistant - Tamper Resistant - 15 A

Receptacle Type Single

Resistance Properties Corrosion Resistant, Tamper Resistant

Special Features Corrosion resistant

Standard UL498, CSA C22.2 No. 42

Standards cULus Listed, UL 498

Sub-Category Single Receptacles

Surge Protection No

Surge Suppression No

Tamper Resistant Yes

Temperature Rating Temperature Rise: Maximum 30ÃÂ°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60ÃÂ°C, minimum -40ÃÂ°C without impact

UL 94 Flammability Rating V-2

Voltage 125.0 V

Voltage - Plugs and Receptacles 125V AC

Voltage Rating 125V AC

Weather Resistant - Plugs and Receptacles No

Wire Connection Type Screw Terminals

Wire Connection Types Screw Terminals

Wire Size #14 - #10

Wiring Method Back, Side

Wiring Method - Plugs and Receptacles Back and Side
