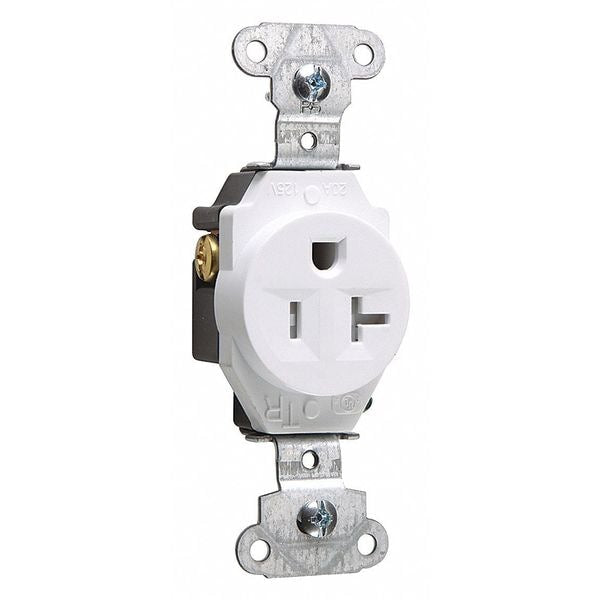

Receptacle, 20 A Amps, 125V AC, Flush Mount, Single Outlet, 5-20R, White

SKU
Brand Legrand
Categories
Description Receptacle, Connection Orientation Straight, Current Rating 20 A, Grounding Grounded, Housing Color White, Housing Material Nylon (Face), PVC (Back Body), Mount Type Flush, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Receptacle Type Single, Resistance Properties Corrosion Resistant, Tamper Resistant, Standards cULus Listed, UL 498, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Method Back, Side
graingerSKU: , mscSKU: , zoro_no: G7766495, mongo_id: 65bbe8729a749db822791eda

Web Price

$7.74 / each

Product Details

Additional Electrical Protection Standard Protection

Additional Electrical Protections Standard Protection

Amperage 20.0 A

Amps - Plugs and Receptacles 20

Amps - Plugs and Receptacles 20 A

Application Environment Commercial

Application Sector Commercial

Color White

Color - Plugs and Receptacles White

Connection Orientation Straight

Contact Material Brass

Corrosion Resistant Yes

Country of Origin (subject to change) Mexico

Current Rating 20 A

Face Diameter 1.38 in

Face Plate Height 1.96 in

Face Plate Width 1.296 in

Finish Matte

Grade Federal Specification

Grounding Grounded

Horsepower Rating 1 hp

Housing Color White

Housing Material Nylon (Face), PVC (Back Body)

HP_ 1 hp

Includes Auto-Ground Clip, Mounting Hardware

Includes Mounting Hardware Yes

Is Tamper-Resistant Yes

Item - Plugs and Receptacles Receptacle

Key Resistance Properties Corrosion Resistant, Tamper Resistant

Market Commercial, Residential

Material Nylon

Maximum Operating Temperature 60 Degrees C

Maximum Wire Size 4 AWG

Minimum Operating Temperature -40 Degrees C

Mount Hole Center-to-Center Height 3.68 in

Mount Type Flush

Mounting Type - Plugs and Receptacles Flush

NEMA Configuration 5-20

NEMA Receptacle Configuration 5-20R

NEMA Receptacle Configuration - Plugs and Receptacles 5-20R

Number of Gangs 1

Number of Poles 2

Number of Poles & Wires 2 Pole / 3 Wire

Number of Wires 3

Outlet Type - Plugs and Receptacles Single

Package Quantity 1

Phase Single

Power Indicator No

Primary Resistance Properties Corrosion Resistant - Tamper Resistant - 20 A, Tamper Resistant - Corrosion Resistant - 20 A, Tamper Resistant - Tamper Resistant - 20 A

Receptacle Type Single

Resistance Properties Corrosion Resistant, Tamper Resistant

Special Features Corrosion resistant

Standard UL 498

Standards cULus Listed, UL 498

Sub-Category Single Receptacles

Surge Protection No

Surge Suppression No

Tamper Resistant Yes

UL 94 Flammability Rating V-2

Voltage 125.0 V

Voltage - Plugs and Receptacles 125V AC
