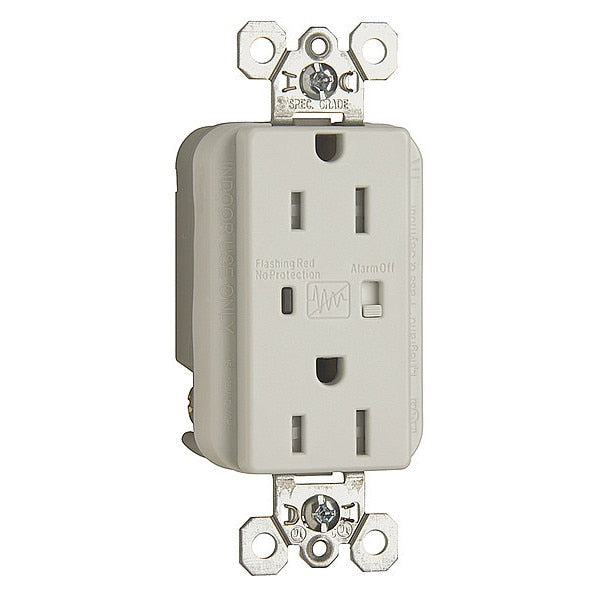

Tamper Resistant Extra Heavy Duty Surge Protective Duplex Receptacle, Number of Gangs: 1 Nylon

SKU
Brand Legrand
Categories
Description Receptacle, Connection Orientation Straight, Current Rating 15 A, Grounding Grounded, Housing Color White, Housing Material Nylon, Mount Type Surface, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Receptacle Type Duplex, Resistance Properties Corrosion Resistant, Tamper Resistant, Standards cULus Listed, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Method Back, Side, Surge Protection Yes
graingerSKU: 52YN80, mscSKU: , zoro_no: G7334017, mongo_id: 65bbea1022d7a989a9993907

Web Price

$115.19 / each

Qty

Product Details

Additional Electrical Protection Surge Protection

Additional Electrical Protections Surge Protection

Amperage 15 A

Amps 15

Amps - Plugs and Receptacles 15 A

Application Environment General Purpose

Application Sector Residential/Commercial

Color White

Color - Plugs and Receptacles White

Connection Side & Back Wire

Connection Orientation Straight

Contact Material Brass

Corrosion Resistant No

Country of Origin (subject to change) China

Current Rating 15 A

Environmental Conditions UL94 V2

Face Plate Height 2.8 in

Face Plate Width 1.7 in

For Location Indoor

Frequency Rating 60 Hz

Grade General Use

Grounding Grounded

Housing Color White

Housing Material Nylon

Includes Auto-Ground Clip, Mounting Hardware

Includes Mounting Hardware Yes

Item - Plugs and Receptacles Receptacle

Key Resistance Properties Corrosion Resistant, Tamper Resistant

Market Commercial, Residential

Material Nylon

Maximum Operating Temperature 131 Degrees F

Maximum Surge Current 24 kA

Maximum Wire Size 10 AWG

Minimum Operating Temperature -4 Degrees F

Minimum Wire Size 14 AWG

Mount Type Surface

Mounting Type Surface

Mounting Type - Plugs and Receptacles Surface

NEMA Configuration 5-15

NEMA Receptacle Configuration 5-15R

NEMA Receptacle Configuration - Plugs and Receptacles 5-15R

Number of Gangs 1

Number of Poles 2

Number of Poles & Wires 2 Pole / 3 Wire

Number of Wires 3

Outlet Type Decorator

Outlet Type - Plugs and Receptacles Decorator Duplex

Package Quantity 1

Phase Single

Power Indicator Yes

Primary Resistance Properties Corrosion Resistant - Tamper Resistant - 15 A, Tamper Resistant - Corrosion Resistant - 15 A, Tamper Resistant - Tamper Resistant - 15 A

Receptacle Type Duplex

Resistance Properties Corrosion Resistant, Tamper Resistant

Size 3.82H x 1-3/4Wx 1.225D

Special Features Audible Alarm with LED Indicator

Standards cULus Listed

Surge Protection Yes

Surge Suppression Yes

Tamper Resistant Yes

Type of Indicators LED, Audible Alarm

UL 94 Flammability Rating V-2

Visual Indicator Lights Power Connected, No Longer Protected/No Reset

Voltage 125VAC
