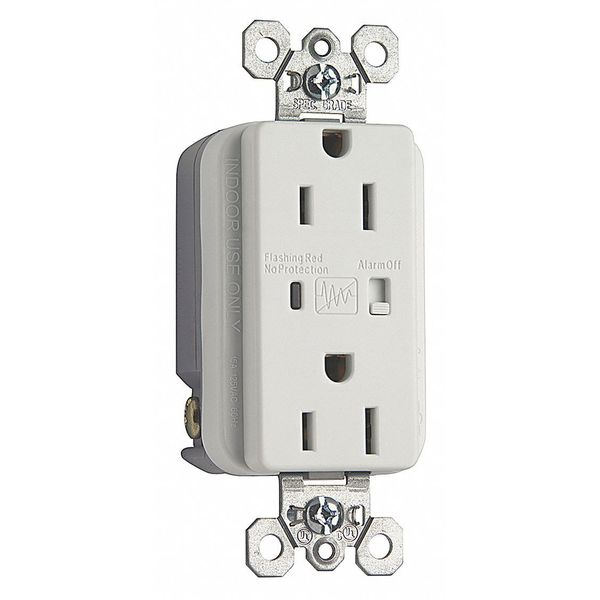

Urge Protective Duplex Receptacle, Number of Gangs: 1 Nylon, Matte Finish, White

SKU
Brand Legrand
Categories
Description Receptacle, Connection Orientation Straight, Current Rating 15 A, Grounding Isolated Ground, Housing Color White, Housing Material Thermoplastic, Mount Type Surface, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Receptacle Type Duplex, Resistance Properties Impact Resistant, Standards ANSI/EEE C62.41 (Formerly IEEE 587) ANSI/IEEE C62.45, CSA Certified C22.2 No. 42, cUL, UL1449 UL 498, Voltage Rating 125V AC, Wiring Method Back, Side

Web Price

$51.24 / each

Qty

Product Details

Additional Electrical Protection Isolated Ground, Surge Protection

Additional Electrical Protections Isolated Grounding & Surge Protection

Amps 15

Amps - Plugs and Receptacles 15

Amps - Plugs and Receptacles 15 A

Application Environment Commercial

Application Sector Commercial

Color White

Color - Plugs and Receptacles White

Connection Back and side wire

Connection Orientation Straight

Contact Material Copper Alloy

Corrosion Resistant No

Country of Origin (subject to change) Mexico

Current Rating 15 A

Environmental Conditions Flammability: UL94 V2

Face Plate Height 2.8 in

Face Plate Width 1.75 in

Finish Matte

Grade Federal Specification

Grounding Isolated Ground

Housing Color White

Housing Material Thermoplastic

Includes Grounding Clip, Mounting Hardware

Includes Mounting Hardware Yes

Isolated Grounding Yes

Item - Plugs and Receptacles Receptacle

Key Resistance Properties Standard Resistance

Market Commercial, Residential

Material Nylon

Maximum Operating Temperature 131 Degrees F

Maximum Wire Size 10 AWG

Minimum Operating Temperature -4 Degrees F

Minimum Wire Size 14 AWG

Mount Hole Center-to-Center Height 3.82 in

Mount Hole Center-to-Center Width 0.94 in

Mount Type Surface

Mounting Type - Plugs and Receptacles Surface

NEMA Configuration 5-15

NEMA Receptacle Configuration 5-15R

NEMA Receptacle Configuration - Plugs and Receptacles 5-15R

Number of Gangs 1

Number of Poles 2

Number of Poles & Wires 2 Pole / 3 Wire

Number of Wires 3

Outlet Type - Plugs and Receptacles Standard Duplex

Overall Depth 1.225 in

Package Quantity 1

Power Indicator No

Primary Resistance Properties Impact Resistant - 15 A

Receptacle Type Duplex

Resistance Properties Impact Resistant

Size 3.82H x 1-3/4Wx 1.225D

Special Features Solid-state LED monitor has 25-year minimum life expectancy. A high visibility, wide-angle lens indicates protection is in place. LED Indication: steady green = protected, flashing red = not protected, OFF = no power to unit. Audible alarm alert of MOV damage. Alarm able to be turned On/Off. Wrap-around steel strap for structural integrity. Auto-ground is standard, for easier installation. Impact-resistant nylon exterior resists impacts and scrapes. Triple-wipe, copper-alloy contacts for superior, more dependable connection. External screw-pressure-plate back and side wire terminals including ground with external back wire clamps (exclusive) accept #14 - #10 AWG copper or copper-clad, solid or stranded conductors. External pressure plate feature allows two conductors to be terminated by a single screw. Thermal protection in 3 modes. 3 17mm dual pack MOVs absorb up to 340 Joules of excess energy in each leg (L-N, L-G, N-G) with 24,000 amp current handling capability for full, equal and symmetrical protection. Protection response time in less than one nanosecond.

Standard cUL UL1449, UL498: CSA C22.2 No. 42: ANSI/EEE C62.41 (Formerly IEEE 587), ANSI/IEEE C62.45 Installation Categories Ã¢ÂÂ¬ÃÂAÃ¢ÂÂ¬ (Ring Wave) Ã¢ÂÂ¬ÃÂBÃ¢ÂÂ¬ (Unidirectional Impulse).

Standards ANSI/EEE C62.41 (Formerly IEEE 587) ANSI/IEEE C62.45, CSA Certified C22.2 No. 42, cUL, UL1449 UL 498

Sub-Category Duplex Receptacles

Surge Protection Yes

Surge Suppression Yes

Tamper Resistant No

UL 94 Flammability Rating V-2

Voltage 125VAC

Voltage - Plugs and Receptacles 125V AC

Voltage Rating 125V AC

Weather Resistant - Plugs and Receptacles No

Wiring Method Back, Side

Wiring Method - Plugs and Receptacles Back and Side
