Home / All Metal Push to Connect Fitting

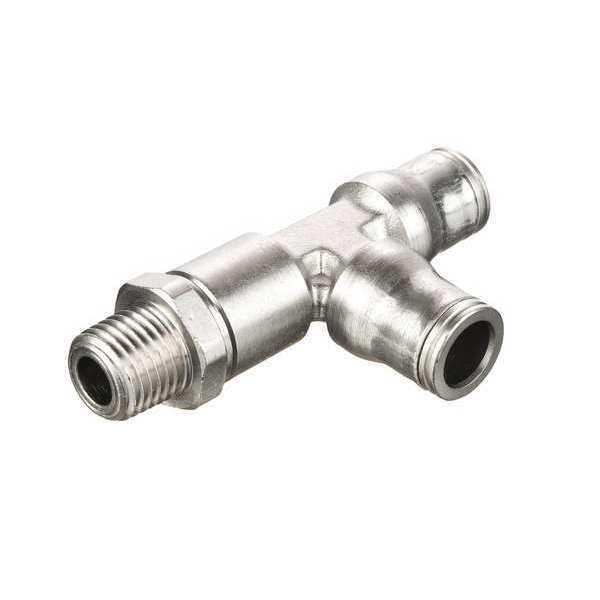

All Metal Push to Connect Fitting

SKU
Brand Legris
Categories
Description Fractional All Metal Push-to-Connect Fitting, Application Coffee Machines, Food Processing, Medical Equipment, Misting, Printing, Welding Robots, Color Silver, Fitting Side A Connection Type NPT, Fitting Side B Connection Type Push-to-Connect, Fitting Side C Connection Type Push-to-Connect, Fitting Side A Pipe Size 1/8 in, Includes Pre-Applied Thread Sealant Yes, Fitting Side B Tube Outer Diameter 5/32 in, Fitting Side C Tube Outer Diameter 5/32 in, Fitting Material Brass
graingerSKU: , mscSKU: 68966753, zoro_no: G404850796, mongo_id: 65bbe8dd22d7a989a991caa1

Web Price

$17.11 / each

Qty

Product Details

Application Coffee Machines, Food Processing, Medical Equipment, Misting, Printing, Welding Robots

Color Silver

Compatible Tube Hardness 95 Shore A

Compatible Tube Material Copper, Fluoropolymer, Polyethylene, Polyurethane, Semi-Rigid Nylon, Stainless Steel

Connection Type NPT x Push-to-Connect x Push-to-Connect

Country of Origin (subject to change) Spain

End Connection Type Push-to-Connect, Threaded

Finish/Coating Nickel Plated

Fitting Body Material Nickel Plated Brass

Fitting Material Brass

Fitting Pipe Size 1/8 in

Fitting Shape Tee

Fitting Side A Connection Type NPT

Fitting Side A Pipe Size 1/8 in

Fitting Side B Connection Type Push-to-Connect

Fitting Side B Tube Outer Diameter 5/32 in

Fitting Side C Connection Type Push-to-Connect

Fitting Side C Tube Outer Diameter 5/32 in

Fitting Thread Size 1/8

For Tube OD 5/32 in x 5/32 in

For Tube Outside Diameter 5/32 in

Includes Pre-Applied Thread Sealant Yes

Maximum Operating Pressure 435 psi

Maximum Operating Temperature 302 Degrees F

Minimum Operating Temperature -4 Degrees F

Overall Length 78 mm

Package Quantity 1

Pipe Size 1/8 in

Resistance Properties Abrasion-Resistant, Corrosion-Resistant

Specific Fitting Shape Tee

Standards ISO 14743, DI: 97/23/EC (PED), DI : 2002/95/EC (RoHS), 2011/65/EC, RG: 1907/2006 (REACH), DI: 94/9/EC (ATEX ), UL94 V-0: Food - RG: 21CFR (FDA), RG: 193

System of Measurement Imperial

Thread Sealant Type FKM Seal

Vacuum Rating 755 mmHg
