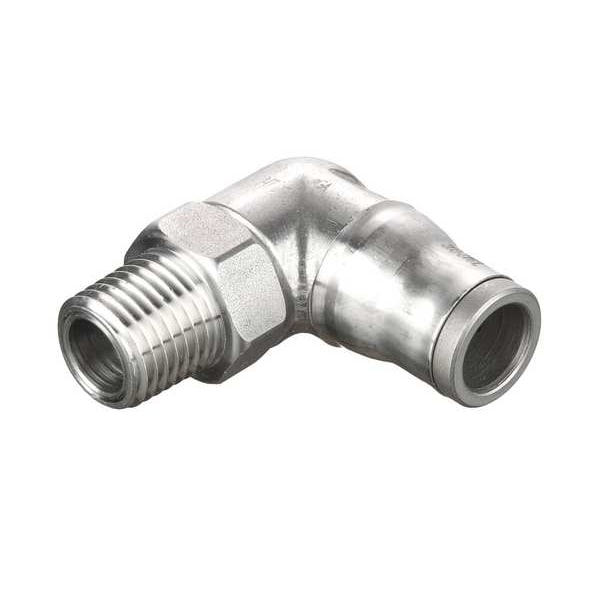

All Metal Push to Connect Fitting

SKU
Brand Legris
Categories
Description Metric Stainless Steel Push-to-Connect Fitting, Application Air, Beverage, Food Processing, Fitting Side A Connection Type BSPT, Fitting Side B Connection Type Push-to-Connect, Fitting Side A Pipe Size 1/8 mm, Fitting Side B Tube Outer Diameter 8 mm, Fitting Material Stainless Steel, Fitting Thread Size R1/8, Material Grade 316L, Color Silver, Includes Pre-Applied Thread Sealant No, Maximum Operating Pressure 435 psi, Maximum Operating Temperature 302 Degrees F, Overall Length 24 1/2 mm
graingerSKU: , mscSKU: 48689095, zoro_no: G604850701, mongo_id: 65bbe8b722d7a989a990e592

Web Price

$133.74 / each

Qty

Product Details

Application Air, Beverage, Food Processing

Color Silver

Compatible Tube Hardness 95 Shore A

Compatible Tube Material Copper, Fluoropolymer, Polyethylene, Polyurethane, Semi-Rigid Nylon, Stainless Steel

Connection Type BSPT x Push-to-Connect

Country of Origin (subject to change) France

End Connection Type Push-to-Connect, Threaded

Fitting Body Material 316L Stainless Steel

Fitting Material Stainless Steel

Fitting Shape Elbow

Fitting Side A Connection Type BSPT

Fitting Side A Pipe Size 1/8 mm

Fitting Side B Connection Type Push-to-Connect

Fitting Side B Tube Outer Diameter 8 mm

Fitting Thread Size R1/8

For Tube OD 8 mm

For Tube Outside Diameter 8 mm

Includes Pre-Applied Thread Sealant No

Material Grade 316L

Maximum Operating Pressure 435 psi

Maximum Operating Temperature 302 Degrees F

Minimum Operating Temperature -4 Degrees F

Overall Length 24 1/2 mm

Package Quantity 1

Pipe Size 1/8 mm

Resistance Properties Chemical-Resistant, Corrosion-Resistant

Specific Fitting Shape 90 Degrees Elbow Adapter

Standards 2011/65/EC, DI : 2002/95/EC (RoHS), DI: 94/9/EC (ATEX), DI: 97/23/EC (PED), ISO 14743, RG : 1907/2006 (REACH), RG: 1935/2004/EC, RG: 21CFR (FDA), UL94 V-0: Seal, USDA NSF H1: Grease

System of Measurement Metric
