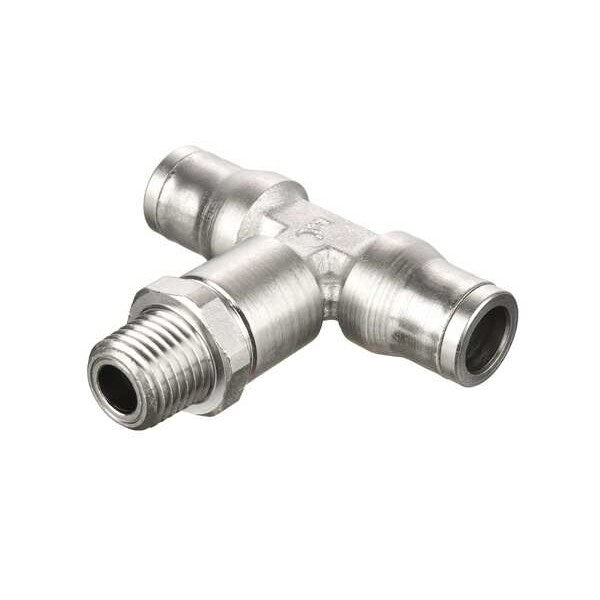

Metric All Metal Push-to-Connect Fitting

SKU
Brand Legris
Categories
Description Metric All Metal Push-to-Connect Fitting, Application Coffee Machines, Food Processing, Medical Equipment, Misting, Printing, Welding Robots, Color Silver, Fitting Side A Connection Type BSPT, Fitting Side B Connection Type Push-to-Connect, Fitting Side C Connection Type Push-to-Connect, Fitting Side A Pipe Size 3/8 in, Includes Pre-Applied Thread Sealant No, Fitting Side B Tube Outer Diameter 10 mm, Fitting Side C Tube Outer Diameter 10 mm, Fitting Material Brass
graingerSKU: , mscSKU: 68966837, zoro_no: G304850858, mongo_id: 65bbe89022d7a989a98fff31

Web Price

$33.06 / each

Qty

Product Details

Application Coffee Machines, Food Processing, Medical Equipment, Misting, Printing, Welding Robots

Color Silver

Connection Type BSPT x Push-to-Connect x Push-to-Connect

Country of Origin (subject to change) Spain

End Connection Type Push-to-Connect, Threaded

Finish/Coating Nickel Plated

Fitting Body Material Nickel Plated Brass

Fitting Material Brass

Fitting Pipe Size 3/8 in

Fitting Shape Tee

Fitting Side A Connection Type BSPT

Fitting Side A Pipe Size 3/8 in

Fitting Side B Connection Type Push-to-Connect

Fitting Side B Tube Outer Diameter 10 mm

Fitting Side C Connection Type Push-to-Connect

Fitting Side C Tube Outer Diameter 10 mm

Fitting Thread Size R3/8

For Tube OD 10 mm x 10 mm

For Tube Outside Diameter 10 mm

Includes Pre-Applied Thread Sealant No

Maximum Operating Pressure 30 barg

Maximum Operating Temperature 302 Degrees F

Minimum Operating Temperature -4 Degrees F

Overall Length 58 mm

Package Quantity 1

Pipe Size 3/8 in

Resistance Properties Abrasion-Resistant, Corrosion-Resistant

Specific Fitting Shape Tee

Standards 2011/65/EC, DI : 2002/95/EC (RoHS), DI: 94/9/EC (ATEX ), DI: 97/23/EC (PED), ISO 14743, RG: 1907/2006 (REACH), RG: 193, RG: 21CFR (FDA), UL94 V-0

System of Measurement Imperial/Metric

Vacuum Rating 755 mmHg
