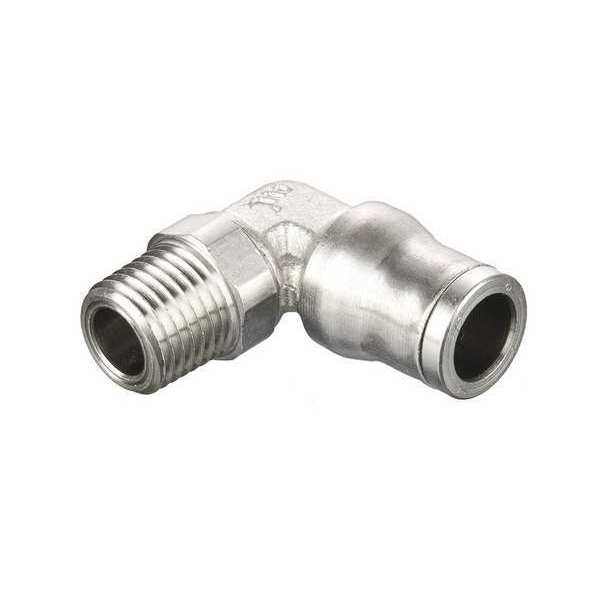

Metric All Metal Push-to-Connect Fitting

SKU
Brand Legris
Categories
Description Metric All Metal Push-to-Connect Fitting, Application Air, Grease, Lubricant, Non-Potable Water, Fitting Side A Connection Type BSPT, Fitting Side B Connection Type Push-to-Connect, Fitting Side A Pipe Size 3/8 mm, Fitting Side B Tube Outer Diameter 14 mm, Fitting Material Brass, Fitting Thread Size R3/8, Color Silver, Maximum Operating Pressure 20 barg, Maximum Operating Temperature 302 Degrees F, Overall Length 29 mm, Specific Fitting Shape 90 Degrees Elbow Adapter

Web Price

$30.31 / each

Qty

Product Details

Application Air, Grease, Lubricant, Non-Potable Water

Color Silver

Compatible Copper Tube Type Not Applicable

Compatible Tube Hardness 95 Shore A

Compatible Tube Material Copper, Fluoropolymer, Polyethylene, Polyurethane, Semi-Rigid Nylon, Stainless Steel

Connection Type BSPT x Push-to-Connect

Country of Origin (subject to change) Spain

End Connection Type Push-to-Connect, Threaded

Finish/Coating Nickel Plated

Fitting Body Material Nickel Plated Brass

Fitting Material Brass

Fitting Shape Elbow

Fitting Side A Connection Type BSPT

Fitting Side A Pipe Size 3/8 mm

Fitting Side B Connection Type Push-to-Connect

Fitting Side B Tube Outer Diameter 14 mm

Fitting Thread Size R3/8

For Tube OD 14 mm

For Tube Outside Diameter 14 mm

Maximum Operating Pressure 20 barg

Maximum Operating Temperature 302 Degrees F

Minimum Operating Temperature -4 Degrees F

Overall Length 29 mm

Package Quantity 1

Pipe Size 3/8 mm

Resistance Properties Abrasion-Resistant, Corrosion-Resistant

Specific Fitting Shape 90 Degrees Elbow Adapter

Standards 2011/65/EC, DI : 2002/95/EC (RoHS), DI: 94/9/EC (ATEX ), Industrial - ISO 14743: DI: 97/23/EC (PED), RG: 1907/2006 (REACH), RG: 193, UL94 V-0: Food - RG: 21CFR (FDA)

System of Measurement Metric

Vacuum Rating 755 mmHg
