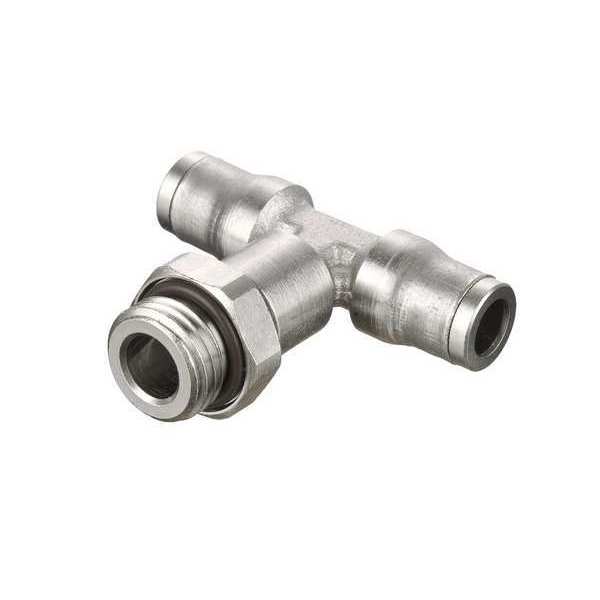

Metric All Metal Push-to-Connect Fitting

SKU
Brand Legris
Categories
Description Metric All Metal Push-to-Connect Fitting, Application Coffee Machines, Air, Food Processing, Grease, Lubricant, Medical Equipment, Misting, Non-Potable Water, Printing, Welding Robots, Color Silver, Fitting Side A Connection Type BSPP, Fitting Side B Connection Type Push-to-Connect, Fitting Side C Connection Type Push-to-Connect, Fitting Side A Pipe Size 1/8 mm, Includes Pre-Applied Thread Sealant No, Fitting Side B Tube Outer Diameter 8 mm, Fitting Side C Tube Outer Diameter 8 mm
graingerSKU: , mscSKU: 68967942, zoro_no: G904850852, mongo_id: 65bbe7c33aaddbd5a90b405f

Web Price

$22.06 / each

Qty

Product Details

Application Coffee Machines, Air, Food Processing, Grease, Lubricant, Medical Equipment, Misting, Non-Potable Water, Printing, Welding Robots

Color Silver

Compatible Tube Hardness 95 Shore A

Compatible Tube Material Copper (when Grooved), Fluoropolymer, Polyethylene, Semi-Rigid Nylon, Stainless Steel (when Grooved)

Connection Type BSPP x Push-to-Connect x Push-to-Connect

Country of Origin (subject to change) Spain

End Connection Type Push-to-Connect

Finish/Coating Nickel Plated

Fitting Body Material Nickel Plated Brass

Fitting Material Brass

Fitting Shape Tee

Fitting Side A Connection Type BSPP

Fitting Side A Pipe Size 1/8 mm

Fitting Side B Connection Type Push-to-Connect

Fitting Side B Tube Outer Diameter 8 mm

Fitting Side C Connection Type Push-to-Connect

Fitting Side C Tube Outer Diameter 8 mm

Fitting Thread Size 1/8

For Tube OD 8 mm x 8 mm

For Tube Outside Diameter 8 mm

Includes Pre-Applied Thread Sealant No

Maximum Operating Pressure 435 psi

Maximum Operating Temperature 302 Degrees F

Minimum Operating Temperature -20 Degrees F

Overall Length 1 7/8 in

Package Quantity 1

Pipe Size 1/8 mm

Resistance Properties Abrasion-Resistant, Corrosion-Resistant

Specific Fitting Shape Adapter Tee

Standards 2011/65/EC, DI : 2002/95/EC (RoHS), Industrial - ISO 14743: DI: 97/23/EC (PED), RG: 1907/2006 (REACH), DI: 94/9/EC (ATEX ), RG: 193, RG: 21CFR (FDA), UL94 V-0

System of Measurement Metric

Vacuum Rating 755 mmHg
