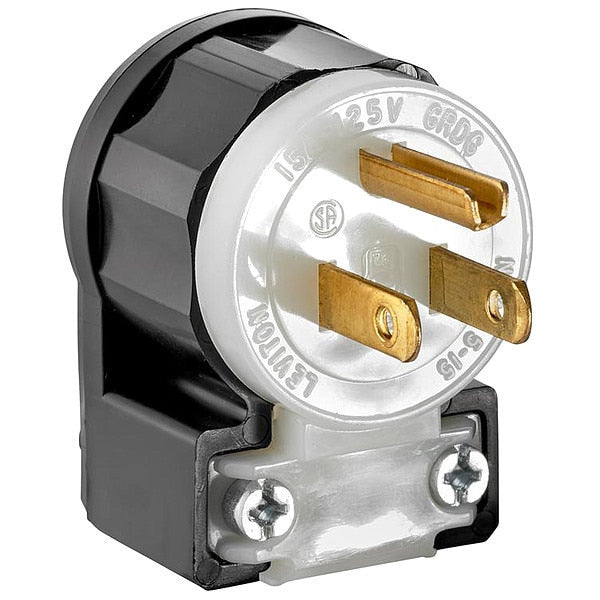

Agl Strt Plug, Blk; Wht, 15 A, Stnd, 5-15P

SKU
Brand Leviton
Categories
Description Angle Straight Blade Plug, Connection Orientation Angled, Current Rating 15 A, Grounding Grounded, Horsepower Rating 1/2 hp, Housing Color Black, White, IP Rating Not Rated, NEMA Plug Configuration 5-15P, Number of Blades 3, Number of Poles 2, Phase Single, Polarized Yes, Resistance Properties Chemical Resistant, Impact Resistant, UV/Sunlight Resistant, UL 94 Flammability Rating V-2, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Style Standard
graingerSKU: 792TM3, mscSKU: 74423369, zoro_no: G104256096, mongo_id: 65bbe5953aaddbd5a9fd2a34

Web Price

$14.74 / each

Qty

Product Details

Amps - Plugs and Receptacles 15 A

Blade Material Brass

Color - Plugs and Receptacles Black, White

Connection Orientation Angled

Cord Size 0.24 in to 0.68 in

Country of Origin (subject to change) United States

Current Rating 15 A

For Environment Dry

For Maximum Cable Diameter 0.68 in

For Minimum Cable Diameter 0.24 in

Grade General Use

Grade - Plugs and Receptacles Industrial

Grounding Grounded

Hazardous Location Specification Not Applicable

Horsepower Rating 1/2 hp

Housing Color Black, White

Housing Material Impact Modified Nylon

Insulation Material Nylon

IP Rating Not Rated

Item - Plugs and Receptacles Straight Blade Plug

Market Industrial

Material Impact Modified Nylon

Maximum Operating Temperature 140 Degrees F

Maximum Wire Size 10 AWG

Minimum Operating Temperature -40 Degrees F

Minimum Wire Size 18 AWG

NEMA Configuration 5-15

NEMA Enclosure Rating Not Rated

NEMA Plug Configuration 5-15P

NEMA Plug Configuration - Plugs and Receptacles 5-15P

Number of Blades 3

Number of Poles 2

Number of Wires 3

Overall Length 1.57 in

Package Quantity 1

Phase Single

Polarized Yes

Resistance Properties Chemical Resistant, Impact Resistant, UV/Sunlight Resistant

Shrouded No

Special Features Chemical Resistant, Resists Impact, Rough Use, Sunlight

Standards ANSI C73, CSA C22.2 No. 42 File LR-406, NEMA WD-6, NOM 057 Certified, RoHS Compliant, UL 498 File E13399, UL Federal Specification WC-596 File E13393

UL 94 Flammability Rating V-2

Voltage - Plugs and Receptacles 125VAC

Voltage Rating 125V AC

Wire Connection Type Screw Terminals

Wiring Style Standard
