Home / GFI Receptacle

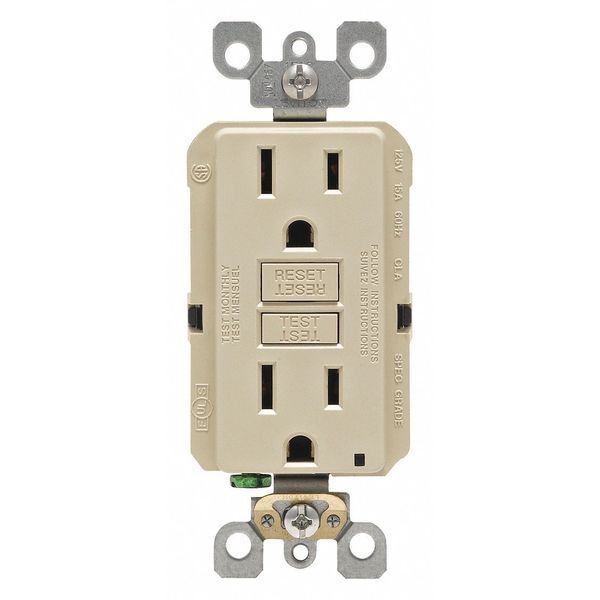

GFI Receptacle

SKU
Brand Leviton
Categories
Description GFI Receptacle, Cover Type No Cover, Current Rating 15 A, GFCI Yes, Grounding Grounded, Housing Color Ivory, Housing Material Polycarbonate, Mount Type Flush, NEMA Receptacle Configuration 5-15R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Standards CSA C22.2 - 144.1 (GFCI) and 42 (Receptacles), CSA Certified, CSA Certified LR-57811, NOM Certified, UL 943 Class A (GFCI) and 498 (Receptacles), UL Listed, UL Listed E48380
graingerSKU: 792UE7, mscSKU: , zoro_no: G204392922, mongo_id: 65bbe95522d7a989a994bc6f

Web Price

$26.49 / each

Qty

Product Details

Additional Electrical Protection GFCI, Surge Protection

Additional Electrical Protections GFCI & Surge Protection

Amps - Plugs and Receptacles 15 A

Application Environment Commercial

Color - Plugs and Receptacles Ivory

Contact Material Brass

Country of Origin (subject to change) China

Cover Type No Cover

Current Rating 15 A

GFCI Yes

Grade Federal Specification

Grounding Grounded

Horsepower Rating 1 hp

Housing Color Ivory

Housing Material Polycarbonate

HP_ 1 hp

Hub Type Feed Through

Includes Faceplate, Nylon Wallplate

Item - Plugs and Receptacles GFCI Receptacle

Key Resistance Properties Standard Resistance

Market Commercial

Maximum Operating Temperature 150.8 Degrees F

Maximum Wire Size 10 AWG

Minimum Operating Temperature -31 Degrees F

Minimum Wire Size 14 AWG

Mount Type Flush

Mounting Type - Plugs and Receptacles Flush

NEMA Configuration 5-15

NEMA Receptacle Configuration 5-15R

NEMA Receptacle Configuration - Plugs and Receptacles 5-15R

Number of Outlets 2

Number of Poles 2

Number of Poles & Wires 2 Pole / 3 Wire

Number of Wires 3

Outlet Type - Plugs and Receptacles Standard Duplex

Package Quantity 1

Phase Single

Polarized Yes

Power Indicator Yes

Primary Resistance Properties 15 A

Receptacle Type Decorator Duplex

Self Testing Yes

Self-Testing Yes

Special Features Auto Adapts and Shifts, Auto-Monitoring, Continuous Ground Fault Protection, Over-Voltage Resistant, Patented Lockout Action Prevents Reset, Standard Brass Self-Grounding Clip

Standards CSA C22.2 - 144.1 (GFCI) and 42 (Receptacles), CSA Certified, CSA Certified LR-57811, NOM Certified, UL 943 Class A (GFCI) and 498 (Receptacles), UL Listed, UL Listed E48380

Surge Protection Yes

Surge Suppression Yes

Tamper Resistant No

Visual Indicator Lights Power Connected

Voltage - Plugs and Receptacles 125V

Voltage Rating 125V AC

Weather Resistant - Plugs and Receptacles No

Wire Connection Type Screw Terminals

Wire Connection Types Screw Terminals

Wiring Method Back, Side

Wiring Method - Plugs and Receptacles Back and Side
