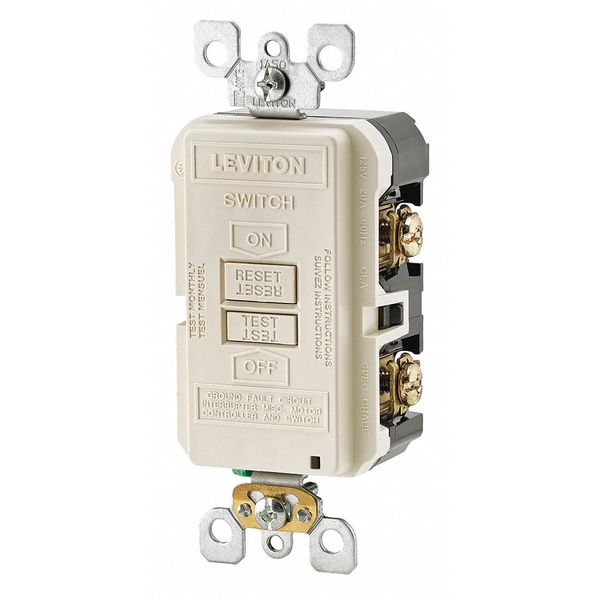

GFI Receptacle, Lt Almnd, PlyCrbt, Bck;Sd

SKU
Brand Leviton
Categories
Description GFI Receptacle, Current Rating 20 A, Housing Color Light Almond, Housing Material Polycarbonate, Mount Type Flush, Number of Poles 2, Number of Wires 3, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Method Back, Side, Horsepower Rating 1 hp, Includes Mounting Hardware Yes, Market Commercial, Self Testing Yes
graingerSKU: 792UG5, mscSKU: , zoro_no: G304392877, mongo_id: 65bbe9ec22d7a989a9985fb4

Web Price

$37.81 / each

Qty

Product Details

Amps - Plugs and Receptacles 20 A

Application Environment Commercial

Color - Plugs and Receptacles Light Almond

Contact Material Brass

Country of Origin (subject to change) China

Current Rating 20 A

Horsepower Rating 1 hp

Housing Color Light Almond

Housing Material Polycarbonate

HP_ 1 hp

Includes Mounting Hardware Yes

Item - Plugs and Receptacles GFCI Receptacle

Market Commercial

Maximum Operating Temperature 66 Degrees C

Maximum Wire Size 10 AWG

Minimum Operating Temperature -35 Degrees C

Minimum Wire Size 14 AWG

Mount Type Flush

Mounting Type - Plugs and Receptacles Flush

NEMA Receptacle Configuration - Plugs and Receptacles No Configuration

Number of Poles 2

Number of Wires 3

Outlet Type - Plugs and Receptacles Blank Face

Package Quantity 1

Power Indicator Yes

Self Testing Yes

Self-Testing Yes

Special Features Auto Adapts and Shifts, Auto-Monitoring, Continuous Ground Fault Protection, Over-Voltage Resistant, Patented Lockout Action Prevents Reset, Standard Brass Self-Grounding Clip

Standards CSA C22.2 - 144.1 (GFCI) and 42 (Receptacles), CSA Certified, CSA Certified LR-57811, NOM Certified, UL 943 Class A (GFCI) and 498 (Receptacles), UL Listed, UL Listed E48380

Surge Suppression Yes

Tamper Resistant No

Visual Indicator Lights Power Connected

Voltage - Plugs and Receptacles 125V

Voltage Rating 125V AC

Weather Resistant - Plugs and Receptacles No

Wire Connection Type Screw Terminals

Wire Connection Types Screw Terminals

Wiring Method Back, Side

Wiring Method - Plugs and Receptacles Back and Side
