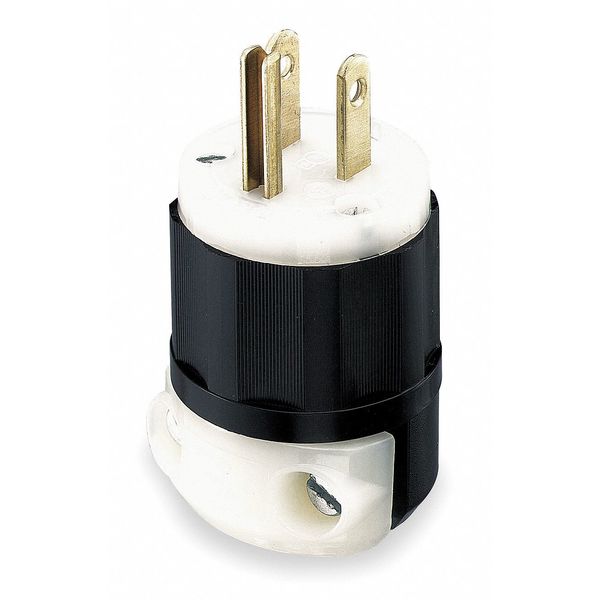

Industrial Straight Blade Plug, 2-Pole, 15 A, 125V AC, 5-15P, Screw Terminal, Black/White

SKU
Brand Leviton
Categories
Description Straight Blade Plug, Connection Orientation Straight, Current Rating 15 A, Grounding Grounded, Horsepower Rating 1/2 hp, Housing Color Black, White, IP Rating Not Rated, NEMA Plug Configuration 5-15P, Number of Blades 3, Number of Poles 2, Phase Single, Polarized Yes, Resistance Properties Chemical Resistant, Impact Resistant, UV/Sunlight Resistant, UL 94 Flammability Rating V-2, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, Face Diameter 1.39 in
graingerSKU: , mscSKU: 74423351, zoro_no: G904836566, mongo_id: 65bbe7a63aaddbd5a90a9dbe

Web Price

$9.49 / each

Qty

Minimum order: 2

Product Details

Amps - Plugs and Receptacles 15 A

Blade Material Brass

Body Length 1.98 in

Color Black, White

Color - Plugs and Receptacles Black, White

Connection Orientation Straight

Cord Size 0.23 in to 0.685 in

Country of Origin (subject to change) United States

Current Rating 15 A

Face Diameter 1.39 in

For Environment Dry

For Maximum Cable Diameter 0.685 in

For Minimum Cable Diameter 0.23 in

Grade Industrial

Grade - Plugs and Receptacles Industrial

Grounding Grounded

Hazardous Location Specification Not Applicable

Horsepower Rating 1/2 hp

Housing Color Black, White

Housing Material Impact Modified Nylon

Insulation Material Nylon

IP Rating Not Rated

Item - Plugs and Receptacles Straight Blade Plug

Market Industrial

Material Impact Modified Nylon

Maximum Operating Temperature 140 Degrees F

Maximum Wire Size 10 AWG

Minimum Operating Temperature -40 Degrees F

Minimum Wire Size 18 AWG

NEMA Configuration 5-15

NEMA Enclosure Rating Not Rated

NEMA Plug Configuration 5-15P

NEMA Plug Configuration - Plugs and Receptacles 5-15P

NEMA Rating Not Rated

Number of Blades 3

Number of Poles 2

Number of Wires 3

Outside Diameter 1.53 in

Overall Length 2.81 in

Package Quantity 1

Phase Single

Polarized Yes

Resistance Properties Chemical Resistant, Impact Resistant, UV/Sunlight Resistant

Shrouded No

Special Features Chemical Resistant, Resists Impact, Rough Use, Sunlight

Standards ANSI C73, CSA C22.2 No. 42 File LR-406, NEMA WD-6, NOM 057 Certified, RoHS Compliant, UL 498 File E13399, UL Federal Specification WC-596 File E13393

UL 94 Flammability Rating V-2

Voltage - Plugs and Receptacles 125V AC

Voltage Rating 125V AC

Wire Connection Type Screw Terminals

Wiring Style Standard
