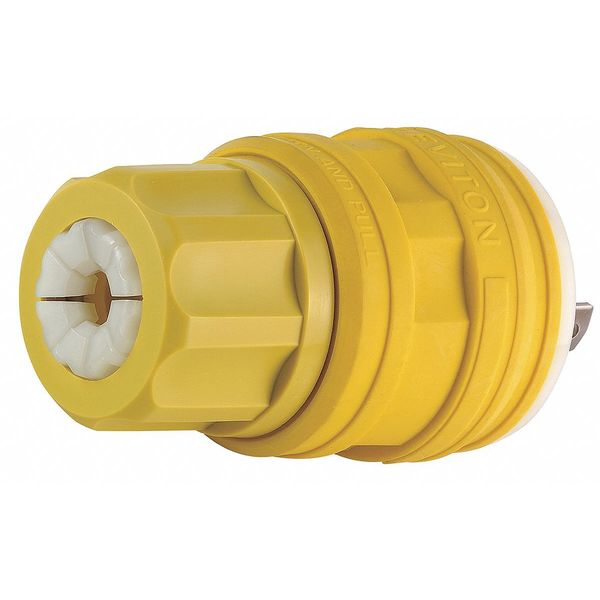

Locking Plug

Locking Plug

  • Leviton
  • Locking Plug, Connection Orientation Straight, Current Rating 15 A, Housing Color Yellow, Housing Material EPTR Rubber, NEMA Plug Configuration L7-15P, Number of Blades 3, Number of Poles 2, Phase Single, Polarized Yes, Resistance Properties Watertight, Voltage Rating 277V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, Face Diameter 1.5 in, For Maximum Cable Diameter 0.687 in, For Minimum Cable Diameter 0.234 in, Grade General Use, Grounding Grounded

    graingerSKU: 792T61, mscSKU: 48436232, zoro_no: G304393409, mongo_id: 65bbe7ee9a749db822766cec

Web Price
$32.11 / each
Qty

Product Details

15A
Nickel-Plated Brass
3.49 in
EPTR Rubber
Yellow
Yellow
Straight
0.234 in to 0.687 in
United States
15 A
1.5 in
Rated V-2 per UL 94
Washdown
0.687 in
0.234 in
General Use
Industrial
Grounded
Not Applicable
2 hp
Yellow
EPTR Rubber
IP66, IP67, IP68, IP69K
Locking Plug
Industrial
EPTR Rubber
60 Degrees C
10 AWG
No
-40 Degrees C
18 AWG
L7-15
L7-15P
L7-15P
3
2
3
-40A deg C to 60A deg C
1.28 in
3.49 in
1
Single
Yes
Watertight
No
ANSI C73, CSA C22.2 No. 42 File LR-406, NEMA WD-6, NOM 057 Certified, UL 498
Max 30C after 250 cycles OL at 200 percent rated current
V-2
277VAC
277V AC
Screw Terminals
Standard
