Home / Occupancy Sensor/Switching Relay, 120VAC

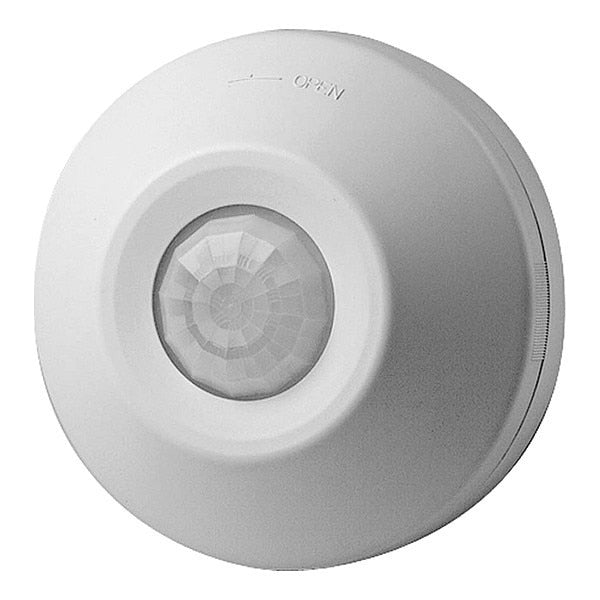

Occupancy Sensor/Switching Relay, 120VAC

SKU
Brand Leviton
Categories
Description Occupancy Sensor, Item - Motion Sensing and Dimming Occupancy Sensor and Switching Relay, Communication Method - Motion Sensing and Dimming Hard Wired, Sensing Technology Passive Infrared, Installation Location - Motion Sensor Ceiling, Coverage at Suggested Mounting Height 530 sq ft, Operating Voltage - Motion Sensing and Dimming 120 V AC, Color - Motion Sensing and Dimming White, Time Delay - Motion Sensor 20 sec to 15 min, Time Delay Adjustment Method - Motion Sensor Adjustable
graingerSKU: 791DL8, mscSKU: , zoro_no: G404836585, mongo_id: 65bbf6492fa6309335be6e85

Web Price

$124.61 / each

Qty

Product Details

Color - Motion Sensing and Dimming White

Communication Method - Motion Sensing and Dimming Hard Wired

Country of Origin (subject to change) China

Coverage Angle - Motion Sensor 360 Degrees

Coverage at Suggested Mounting Height 530 sq ft

Description/Special Features a Standard A/C Toggle Switch May be Used to Provide Manual-Off Override So That Lights May be Switched Off, Segmented Fresnel Lens Contains 79 Segments for Optimum Sensitivity and Detection Performance

Installation Location - Motion Sensor Ceiling

Item - Motion Sensing and Dimming Occupancy Sensor and Switching Relay

Lighting Technology Fluorescent, Incandescent

Max. Capacity @ 120VAC 1000V ( Fluorescent), 1000W (Incandescent)

Operating Voltage - Motion Sensing and Dimming 120 V AC

Package Quantity 1

Sensing Technology Passive Infrared

Standards Complies with FCC Regulations, CSA Certified, Title 24, Part 6, UL Listed

Suggested Mounting Height - Motion Sensor 8 ft to 10 ft

Time Delay - Motion Sensor 20 sec to 15 min

Time Delay Adjustment Method - Motion Sensor Adjustable

Use With - Motion Sensing and Dimming 1/4 HP Motor
