Home / Occupancy/Vacancy Sensor, 1100sq ft, White

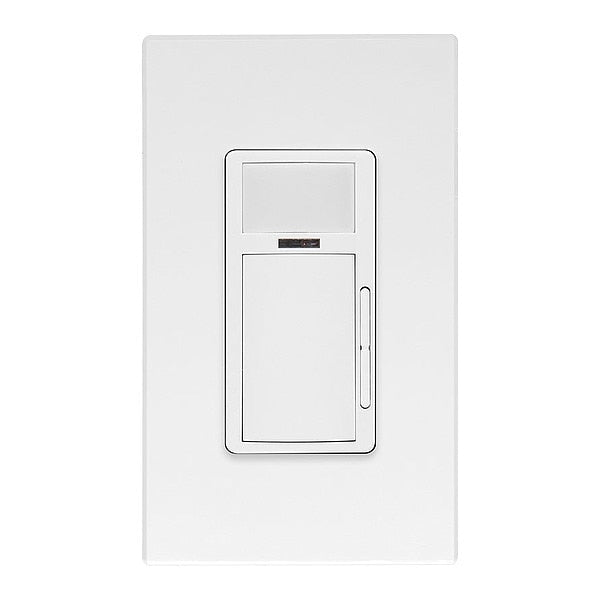

Occupancy/Vacancy Sensor, 1100sq ft, White

Occupancy/Vacancy Sensor, 1100sq ft, White

  • Leviton
  • Vacancy Dimmer, Item - Motion Sensing and Dimming Occupancy Sensor; Vacancy Sensor, Communication Method - Motion Sensing and Dimming Hard Wired, Sensing Technology Passive Infrared, Installation Location - Motion Sensor Wall Switch Box, Coverage at Suggested Mounting Height 1,100 sq ft, Operating Voltage - Motion Sensing and Dimming 120 to 277V AC, Color - Motion Sensing and Dimming White, Coverage Angle - Motion Sensor 180 Degrees

    graingerSKU: 791DN5, mscSKU: , zoro_no: G104395276, mongo_id: 65bbe8289a749db822779abb

Web Price
$126.24 / each
Qty

Product Details

Offices, Lobbies, Small Meeting Rooms
White
White
Hard Wired
China
1100
180 Degrees
1,100 sq ft
Advanced configuration can be performed using the Leviton Smart Sensor App on any Bluetooth enabled Android or iOS device, Configure dimming options such as Partial-0N, Partial-OFF, and Partial-OFF timeouts, Fits in a standard wallbox and gangable with other units, ODD24-IDW is designed for use with a power pack (OPP20 or OSA20) or other Leviton low voltage (24V) source, Out-of-the-box configuration default mode, Set a security code to lock configuration settings
App configurable
50/60Hz
Commercial
120V: Standby: 0.2W Max: 0.5W+Load Current - 277V: Standby: 0.3W Max: 0.6W+Load Current
Wall Switch Box
IP10
Occupancy Sensor; Vacancy Sensor
LED, Tungsten
IECC, UL and cUL listed, FCC, ICC
General Purpose @ 120V: 10A - General Purpose @ 277V: 10A - LED/Electronic Ballast @ 120V: 8A, - LED/Electronic Ballast @ 277V: 5A - Standard Ballast @ 120V: 10A - Standard Ballast @ 277V: 10A - Tungsten @ 120V: 6.67A - Tungsten @ 277V: 6.67A - Motor @ 120V: 1/4HP (FLA 5.8A) - Motor @ 277V: 1/3HP (FLA 3.0A)
10A (General Purpose, LED/Electronic Ballast, Tungsten), 5A (Standard Ballast), 6.67A (1/4 HP Motor)
10A (General Purpose, Standard Ballast), 5A (LED/Electronic Ballast), 6.67A (Tungsten), FLA 3.0A (1/3HP Motor)
Wall Switch
Required
0°C to 40°C
120 to 277V AC
1
180°
Smart Sensor with Dimming
Passive Infrared
Passive Infrared (PIR)
Occupancy / Vacancy
Height 4.13 (104.9mm), Width 2.12 (53.95mm), Depth 1.86 (47.25mm), Install Depth 1.42 (36.22mm)
ASHRAE 90.1, cUL Listed, FCC, ICC, IECC, Title 24, Part 6, UL
-40° to 185°F (-40° to 85°C)
Single-Pole
Can be used to comply with ASHRAE 90.1, IECC and Title 24, Part 6 occupancy/vacancy sensing and dimming requirements
0 to 10V Dimming Ballast
120-277 VAC
