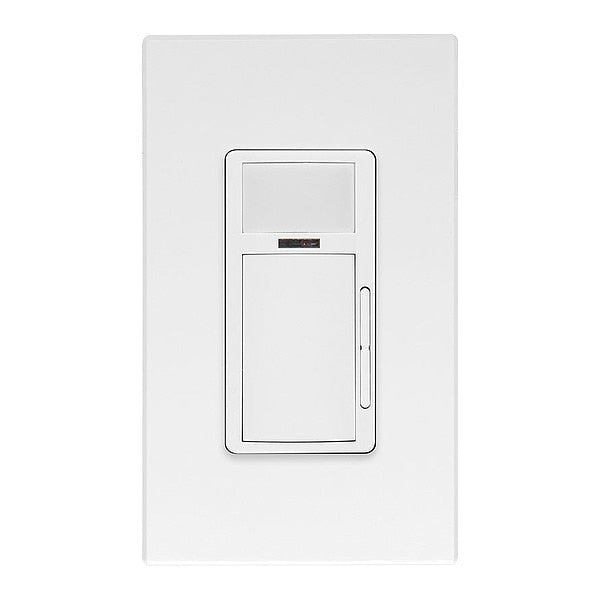

Occupancy/Vacancy Sensor, 1100sq ft, White

SKU
Brand Leviton
Categories
Description Occupancy Sensor, Item - Motion Sensing and Dimming Occupancy Sensor; Vacancy Sensor, Sensing Technology Passive Infrared, Installation Location - Motion Sensor Wall Switch Box, Coverage at Suggested Mounting Height 1,100 sq ft, Operating Voltage - Motion Sensing and Dimming 12 to 24 V DC, Color - Motion Sensing and Dimming White, Time Delay Adjustment Method - Motion Sensor Adjustable, Coverage Angle - Motion Sensor 180 Degrees
graingerSKU: 791DR6, mscSKU: , zoro_no: G504395272, mongo_id: 65bbe7d19a749db82275d009

Web Price

$102.11 / each

Qty

Product Details

Application Small Offices, Lobbies, Small Meeting Rooms

Color White

Color - Motion Sensing and Dimming White

Country of Origin (subject to change) China

Coverage (Sq.Ft.) 1100

Coverage Angle - Motion Sensor 180 Degrees

Coverage at Suggested Mounting Height 1,100 sq ft

Description/Special Features Advanced Configuration can be Performed Using the Leviton Smart Sensor App on Any Bluetooth Enabled Android or iOS Device: Set Operating Mode to Auto-On/Auto-Off or Manual-On/Auto-Off, Configure Dimming Options Such as Partial-0N, Partial-Off, and Partial-Off Timeouts, Fits in a Standard Wallbox and Gangable With Other Units, Nightlight and Daylighting Hold-Off Disabled, Out-Of-The-Box Configuration Default Mode: Auto-On/Auto-Off With 10-Minute Time Out, Sensitivity Set to 75%

Feature App configurable

Grade Commercial

Input Current 24V: 0.02A - 120-277V: N/A

Installation Location - Motion Sensor Wall Switch Box

IP Rating IP10

Item - Motion Sensing and Dimming Occupancy Sensor; Vacancy Sensor

Listings IECC, UL and cUL listed, FCC, ICC

Mounting Wall Switch

Neutral Wire Connection Not Required

Operating Temperature 0ÃÂ°C to 40ÃÂ°C

Operating Voltage - Motion Sensing and Dimming 12 to 24 V DC

Package Quantity 1

Pattern 180ÃÂ°

Product Type Smart Sensor with Dimming

Sensing Technology Passive Infrared

Sensor Technology Passive Infrared (PIR)

Sensor Type Occupancy / Vacancy

Size Height 4.13 (104.9mm), Width 2.12 (53.95mm), Depth 1.86 (47.25mm), Install Depth 1.42 (36.22mm)

Standards ASHRAE 90.1, cUL Listed, FCC, ICC, IECC, Title 24, Part 6, UL

Storage Temperature Range -40ÃÂ° to 185ÃÂ°F (-40ÃÂ° to 85ÃÂ°C)

Switch Type Single-Pole

Testing and Code Compliance Can be used to comply with ASHRAE 90.1, IECC and Title 24, Part 6 occupancy/vacancy sensing, dimming, and manual-ON/auto-OFF requirements

Time Delay Adjustment Method - Motion Sensor Adjustable

Voltage 12-24 VDC
