Home / Recept, Brown, 15 A, GFCI, 2P3W, Bk;Sd, 1PK

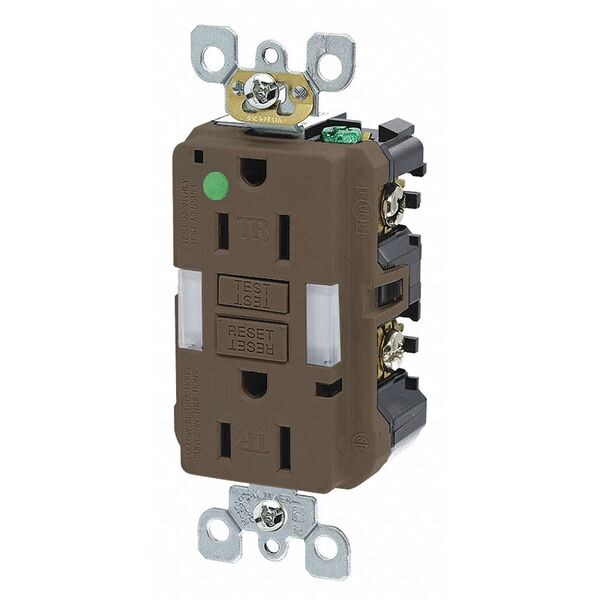

Recept, Brown, 15 A, GFCI, 2P3W, Bk;Sd, 1PK

Recept, Brown, 15 A, GFCI, 2P3W, Bk;Sd, 1PK

  • Leviton
  • GFI Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI Yes, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Brown, Housing Material Thermoplastic, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-15R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Resistance Properties Tamper Resistant

    graingerSKU: 792UA9, mscSKU: , zoro_no: G804392964, mongo_id: 65bbe8bc22d7a989a991265b

Web Price
$53.49 / each
Qty

Product Details

GFCI, Surge Protection
GFCI & Surge Protection
15 A & 20 A Feed-Through
15 A
C-73
UL 943, UL 498, CSA C22.2 No. 42 & 144, FedSpec W-C-596
Hospital Grade
1 HP
Polycarbonate
UL, CSA, NOM-ANCE
Brown
Brown
Straight
Brass
China
No Cover
15 A
Duplex Receptacle Outlet
PBT
2.7 in
1.7 in
Rated V-0 per UL 94
GFCI
Yes
Hospital Grade Fed. Spec.
Brass
Grounded
Plated Steel
Not Applicable
1 hp
Brown
Thermoplastic
1 hp
Feed Through
Strap Material
Yes
GFCI Receptacle
Tamper Resistant
Brass
150.8 Degrees F
10 AWG
-31 Degrees F
14 AWG
3.8 in
Flush
WD-1 & WD-6
5-15
Not Rated
5-15R
5-15R
2
2
2 Pole / 3 Wire
3
-35C to +66C
Duplex
1.4 in
1
Single
Yes
2
Yes
Decorator Duplex
Tamper Resistant
14-18 in-lbs
Yes
Yes
10kA
Delrin® Acetal
Custom Designed Lenses with Edge-Mounted LEDs, Dual Lens, Saves Space, Sensor Provides Automatic ON/OFF Illumination
ANSI C73, CSA C22.2 No. 42 and 144, CSA Certified, Federal Specification W-C-596, NEMA WD-1 and WD-6, NOM-ANCE, UL 498, UL 943, UL Listed
Galvanized Steel
Yes
Yes
Yes
14-10 AWG solid or stranded
Brass
Brass-Hot, Green-Ground, Silver-Neutral
Plated Steel
Back or Side Wire
V-0
Power Connected
125 VAC
125V
125V AC
No
3
Screw Terminals
Screw Terminals
Back, Side
Back and Side
