Home / Receptacle, 15 A Amps, 125VAC, Decorator Duplex Outlet, 5-15R, Brown

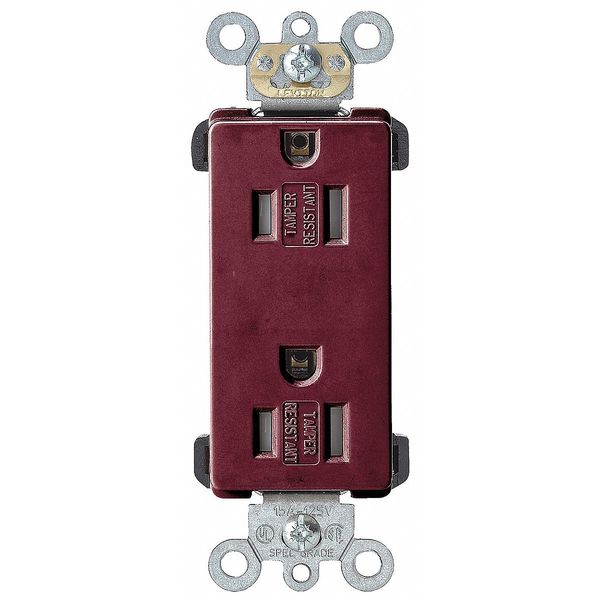

Receptacle, 15 A Amps, 125VAC, Decorator Duplex Outlet, 5-15R, Brown

Receptacle, 15 A Amps, 125VAC, Decorator Duplex Outlet, 5-15R, Brown

  • Leviton
  • Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Brown, Housing Material PBT Polyester, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-15R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Resistance Properties Tamper Resistant

    graingerSKU: 792UU3, mscSKU: , zoro_no: G804256006, mongo_id: 65bbea1022d7a989a999390a

Web Price
$11.86 / each
Qty
Minimum order: 10

Product Details

Standard Protection
Standard Protection
15 A
15 A
C-73
UL 498, Fed Spec W-C-596, CSA C22.2. No. 42
Heavy-Duty Industrial Grade
PBT Polyester Blend
cULus, NOM-ANCE
Brown
Brown
Brown
Straight
Brass
Mexico
No Cover
15 A
Smooth Face
Duplex Receptacle Outlet
Withstands 3000 V minimum
PBT Polyester Blend
2.8 in
1.3 in
Tamper-Resistant
Smooth Face
Rated V-0 per UL 94
No
Federal Specification
Brass
0.030 Brass
Grounded
#8 Hex Head, Triple-Drive Brass
Not Applicable
1/2 hp
Brown
PBT Polyester
1/2 hp
Cover, Wallplate
Yes
Duplex Receptacle Outlet
Tamper Resistant
Phosphor Bronze Triple Wipe 0.031
Industrial
PBT Polyester Blend (Body and Face)
167 Degrees F
10 AWG
-40 Degrees F
14 AWG
3.3 in
Flush
Triple-Drive Plated Steel
5-15
Not Rated
5-15R
5-15R
2
2
2 Pole / 3 Wire
3
-40°C to 75°C
Decorator Duplex
0.9 in
1
Single
Yes
2
Tamper Resistant - Tamper Resistant - 15 A
Decorator Duplex
Tamper Resistant
14-18 in-lbs
Acetal
ANSI, CSA Certified, cULus Listed, Federal Specification, NOM-ANCE, RoHS Compliant, UL Listed
Steel (Galvanized G60)
Duplex Receptacles
Yes
Max 30 °C temperature rise at full rated current
#14 AWG - #10 AWG
Brass
Brass - Hot, Silver - Neutral, Green - Ground,
#8 Triple-Drive Brass
Back or Side Wire
V-0
125 VAC
125VAC
125V AC
3
Screw Terminals
Screw Terminals
Stranded or Solid
Back, Side
Back and Side
