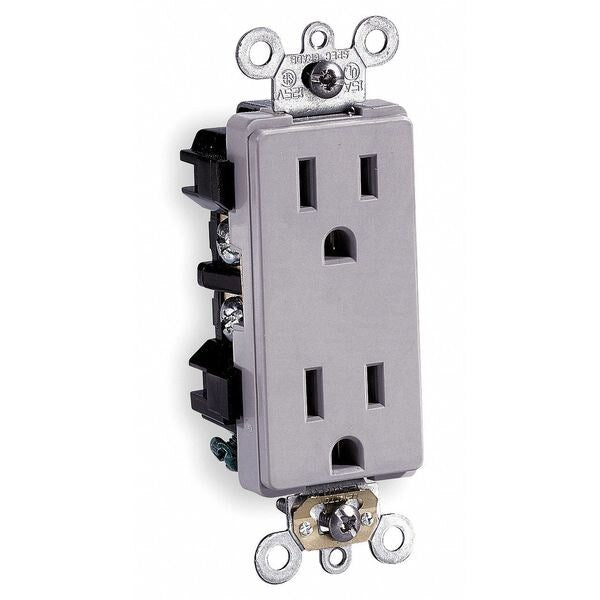

Receptacle

SKU
Brand Leviton
Categories
Description Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Gray, Housing Material PBT Polyester, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-15R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Resistance Properties Not Applicable
graingerSKU: 792T02, mscSKU: , zoro_no: G104393326, mongo_id: 65bbe6643aaddbd5a9028dc2

Web Price

$7.24 / each

Qty

Minimum order: 10

Product Details

Additional Electrical Protection Standard Protection

Additional Electrical Protections Standard Protection

Amps - Plugs and Receptacles 15 A

Application Environment Commercial

Color - Plugs and Receptacles Gray

Connection Orientation Straight

Contact Material Phosphor Bronze

Country of Origin (subject to change) Mexico

Cover Type No Cover

Current Rating 15 A

Description Smooth Face

Face Plate Height 2.6 in

Face Plate Width 1.6 in

GFCI No

Grade Federal Specification

Grounding Grounded

Hazardous Location Specification Not Applicable

Horsepower Rating 1/2 hp

Housing Color Gray

Housing Material PBT Polyester

HP_ 1/2 hp

Includes Strap Material

Includes Mounting Hardware Yes

Item - Plugs and Receptacles Duplex Receptacle Outlet

Key Resistance Properties Standard Resistance

Market Commercial, Industrial

Material PBT Polyester Blend (Body and Face)

Maximum Operating Temperature 140 Degrees F

Maximum Wire Size 10 AWG

Minimum Operating Temperature -40 Degrees F

Minimum Wire Size 14 AWG

Mount Type Flush

NEMA Configuration 5-15

NEMA Enclosure Rating Not Rated

NEMA Receptacle Configuration 5-15R

NEMA Receptacle Configuration - Plugs and Receptacles 5-15R

Number of Outlets 2

Number of Poles 2

Number of Poles & Wires 2 Pole / 3 Wire

Number of Wires 3

Outlet Type - Plugs and Receptacles Decorator Duplex

Package Quantity 1

Phase Single

Polarized Yes

Receptacle Type Decorator Duplex

Resistance Properties Not Applicable

Standards ANSI C73, CSA C22.2 No. 42 File LR-406, cULus NON-ANCE, RoHS Compliant, UL 498 Federal Specification W-C-596 CSA C22.2 No. 42, UL 498 File E13399

Sub-Category Duplex Receptacles

UL 94 Flammability Rating V-2

Voltage - Plugs and Receptacles 125VAC

Voltage Rating 125V AC

Wire Connection Type Screw Terminals

Wire Connection Types Screw Terminals

Wiring Method Back, Side

Wiring Method - Plugs and Receptacles Back and Side
