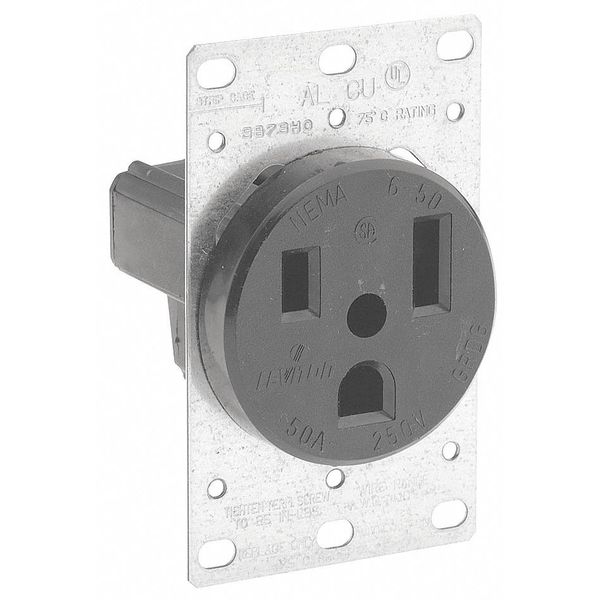

Home / Receptacle, 50 A Amps, 250VAC, Flush Mount, Single Outlet, 6-50R, Black
Receptacle, 50 A Amps, 250VAC, Flush Mount, Single Outlet, 6-50R, Black

Receptacle, 50 A Amps, 250VAC, Flush Mount, Single Outlet, 6-50R, Black

  • Leviton
  • Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 50 A, GFCI No, Grounding Grounded, Housing Color Black, Housing Material Thermoplastic, Mount Type Flush, NEMA Receptacle Configuration 6-50R, Number of Poles 2, Number of Wires 3, Phase Three, Polarized Yes, Receptacle Type Single, Standards ANSI C73, C22.2 No. 14, C22.2 No. 65, File E13399, CSA C22.2 No. 42, NEMA WD-6, UL 486E, UL 498, Voltage Rating 250V AC, Wire Connection Type Screw Terminals

    graingerSKU: 792TU4, mscSKU: 67455352, zoro_no: G104393234, mongo_id: 65bbea3b22d7a989a99a1f75

Web Price
$21.61 / each
Qty

Product Details

Standard Protection
Standard Protection
50 A
50 A
C73
Industrial
3 HP
Polypropylene
Black
Black
Straight
Mexico
No Cover
22.2 No 42, C22.2 No.14, C22.2 No.65
Full Rated Current
50 A
Withstands 2000V per UL498
Polypropylene
Rated V-2 per UL 94
No
Federal Specification
Grounded
3 hp
Black
Thermoplastic
3 hp
Yes
Flush Mounting Receptacle
Standard Resistance
Brass Double-Wipe
Industrial
Thermoplastic (Body and Face)
Flush
Flush
WD-6
6-50
6-50R
6-50R
1
2
2 Pole / 3 Wire
3
-40°C to 60°C
Single
1
Three
Yes
2
50 A
Single
ANSI C73, C22.2 No. 14, C22.2 No. 65, File E13399, CSA C22.2 No. 42, NEMA WD-6, UL 486E, UL 498
Galvanized Steel
Single Receptacles
Max 30C after 50 cycles OL at 150 percent rated current
#4 AWG
Brass screws = Hot; Green screw = Ground
UL 498, UL 486E
250 VAC
250VAC
250V AC
3
Screw Terminals
Screw Terminals
Side
Side
