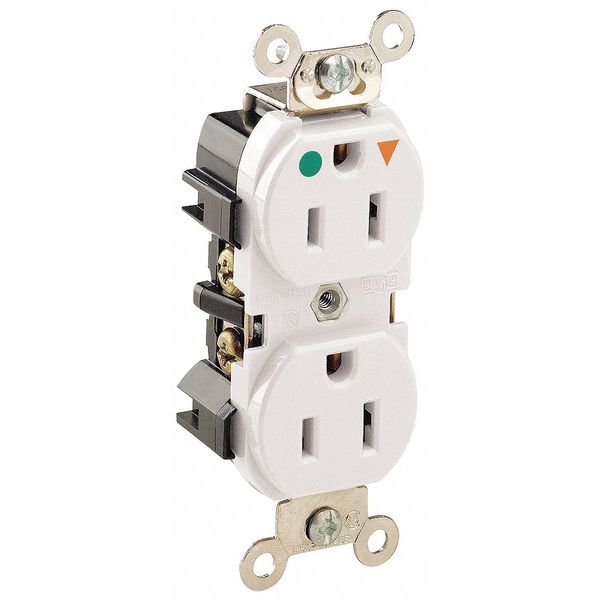

Receptacle

SKU
Brand Leviton
Categories
Description Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Isolated Ground, Hazardous Location Specification Not Applicable, Housing Color White, Housing Material PBT Thermoplastic Polyester, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-15R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Not Applicable
graingerSKU: 792TZ9, mscSKU: , zoro_no: G004393242, mongo_id: 65bbe90822d7a989a992f204

Web Price

$22.99 / each

Qty

Minimum order: 10

Product Details

Additional Electrical Protection Isolated Ground

Additional Electrical Protections Isolated Ground

Amperage 15 A

Amps - Plugs and Receptacles 15 A

ANSI C-73

Applicable Standards UL 498, Fed Spec W-C-569, CSA 22.2 No. 42

Application Environment Heavy-Duty Hospital Grade

At Rated Voltage 1/2 HP

Body Material PBT Polyester Blend

Certification/Listing cULus, NOM-ANCE

Clamp Nuts 0.030 Brass

Color White

Color - Plugs and Receptacles White

Connection Orientation Straight

Contact Material Phosphor Bronze

Country of Origin (subject to change) Mexico

Cover Type No Cover

CSA C22.2 No. 42 File 152105

Current Limiting Full Rated Current

Current Rating 15 A

Description Smooth Face

Device Type Duplex Receptacle Outlet

Dielectric Voltage Withstands 3000V min

Face Material PBT Polyester Blend

Face Plate Height 2.8 in

Face Plate Width 1.3 in

Feature 4 Smooth Face

Flammability Rated V-2 per UL 94

Function Isolated Ground

GFCI No

Grade Hospital Grade Fed. Spec.

Ground Clips Brass

Ground Contacts 0030 Brass

Grounding Isolated Grounding

Grounding Screw #8 Hex Head, Triple-Drive Bass

Hazardous Location Specification Not Applicable

Horsepower Rating 1/2 hp

Housing Color White

Housing Material PBT Thermoplastic Polyester

HP_ 1/2 hp

Includes Mounting Hardware Yes

Isolated Grounding Yes

Item - Plugs and Receptacles Duplex Receptacle Outlet

Key Resistance Properties Standard Resistance

Line Contacts 0.030 Phosopher Bronze

Material PBT Polyester Blend (Body and Face)

Maximum Operating Temperature 140 Degrees F

Maximum Wire Size 10 AWG

Minimum Operating Temperature -40 Degrees F

Minimum Wire Size 14 AWG

Mount Hole Center-to-Center Height 3.3 in

Mount Type Flush

Mounting Screws Triple-Drive Plated Steel

NEMA WD-6

NEMA Configuration 5-15

NEMA Enclosure Rating Not Rated

NEMA Receptacle Configuration 5-15R

NEMA Receptacle Configuration - Plugs and Receptacles 5-15R

Number of Outlets 2

Number of Poles 2

Number of Poles & Wires 2 Pole / 3 Wire

Number of Wires 3

Operating Temperature -40ÃÂ°C to 60ÃÂ°C

Outlet Type - Plugs and Receptacles Duplex

Overall Depth 1.1 in

Package Quantity 1

Phase Single

Polarized Yes

Pole 2

Receptacle Type Duplex

Resistance Properties Not Applicable

Screw Terminal Torque 14-18 in-lbs

Shutter Mechanism Acetal

Standards ANSI C73, cULus NOM-ANCE, NEMA WD-6, RoHS Compliant, UL 498 Federal Specification W-C-569 CSA C22.2 No. 42 CSA C22.2 No. 42 File E152105, UL 498HG File E13399, UL Federal Specification WC-596 File E13399

Strap Material Steel (Galvanized G60)

Sub-Category Duplex Receptacles

Temperature Rise Max 30C temperature rise at full rated current

Terminal Accom. 14-10 AWG

Terminal Clamp Brass

Terminal ID Brass-Hot, Green-Ground, Silver-Neutral

Terminal Screws #8 Triple-Drive Brass

Termination Back or Side Wire

UL 94 Flammability Rating V-2

UL Fed Spec WC-596 File E13399

UL498HG File E13399

Voltage 125 VAC
