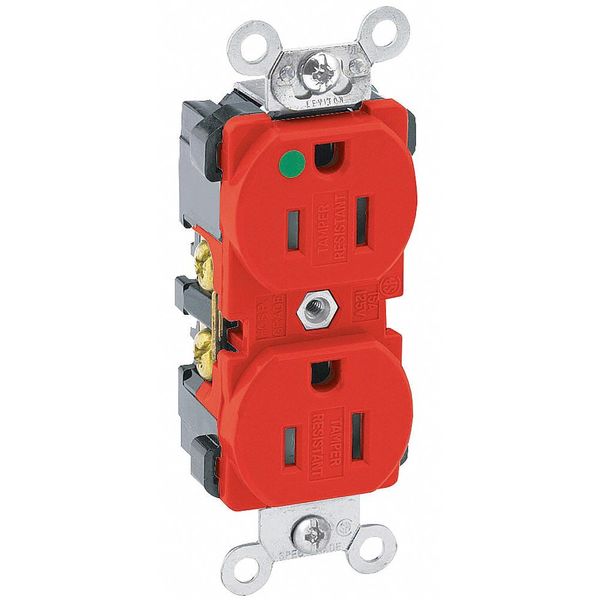

Name: Receptacle
Brand: Leviton
SKU: G604393291
Price: 20.24 USD
Availability: InStock

Home / Receptacle

Receptacle

SKU
Brand Leviton
Categories
Description Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Red, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-15R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Tamper Resistant
graingerSKU: null, mscSKU: null, zoro_no: G604393291, mongo_id: 65bbe6a93aaddbd5a9045784

Web Price

$20.24 / each

Qty

Product Details

Additional Electrical Protection Standard Protection

Additional Electrical Protections Standard Protection

Amps - Plugs and Receptacles 15 A

Application Environment Extra Heavy-Duty Hospital Grade

Color - Plugs and Receptacles Red

Connection Orientation Straight

Contact Material Nickel-Plated Phosphor Bronze

Country of Origin (subject to change) Mexico

Cover Type No Cover

Current Rating 15 A

Description Smooth Face

Face Plate Height 2.8 in

Face Plate Width 1.5 in

GFCI No

Grade Hospital Grade Fed. Spec.

Grounding Grounded

Hazardous Location Specification Not Applicable

Horsepower Rating 1/2 hp

Housing Color Red

Housing Material Nylon

HP_ 1/2 hp

Includes Mounting Hardware Yes

Item - Plugs and Receptacles Duplex Receptacle Outlet

Key Resistance Properties Tamper Resistant

Material Nylon (Body and Face)

Maximum Operating Temperature 140 Degrees F

Maximum Wire Size 10 AWG

Minimum Operating Temperature -40 Degrees F

Minimum Wire Size 14 AWG

Mount Hole Center-to-Center Height 3.3 in

Mount Type Flush

NEMA Configuration 5-15

NEMA Enclosure Rating Not Rated

NEMA Receptacle Configuration 5-15R

NEMA Receptacle Configuration - Plugs and Receptacles 5-15R

Number of Outlets 2

Number of Poles 2

Number of Poles & Wires 2 Pole / 3 Wire

Number of Wires 3

Outlet Type - Plugs and Receptacles Duplex

Overall Depth 1.1 in

Package Quantity 1

Phase Single

Polarized Yes

Receptacle Type Duplex

Resistance Properties Tamper Resistant

Standards ANSI C73, CSA C22.2 No. 42 File E152105, NEMA WD-1 and WD-6, RoHS Compliant, UL 498HG File E13399, UL Federal Specification WC-596 File E13399

Sub-Category Duplex Receptacles

Tamper Resistant Yes

UL 94 Flammability Rating V-2

Voltage - Plugs and Receptacles 125VAC

Voltage Rating 125V AC

Wire Connection Type Screw Terminals

Wire Connection Types Screw Terminals

Wiring Method Back, Side

Wiring Method - Plugs and Receptacles Back and Side
