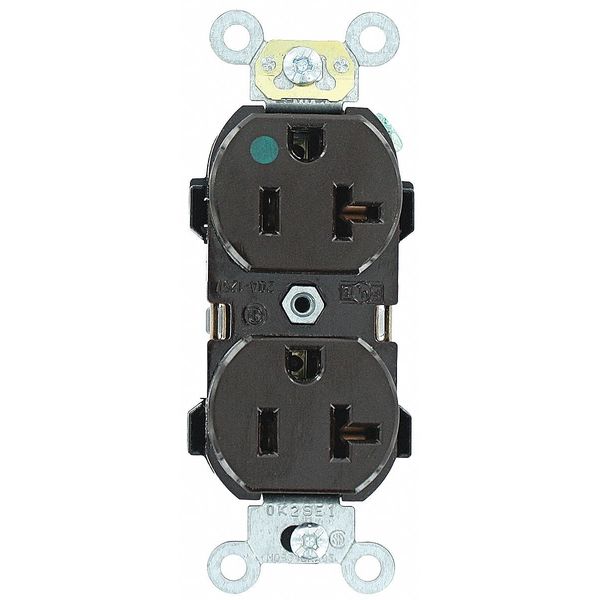

Receptacle

SKU
Brand Leviton
Categories
Description Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Brown, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Not Applicable
graingerSKU: null, mscSKU: null, zoro_no: G004836510, mongo_id: 65bbe5fe3aaddbd5a9ffde59

Web Price

$10.36 / each

Qty

Minimum order: 2

Product Details

Additional Electrical Protection Standard Protection

Additional Electrical Protections Standard Protection

Amperage 20 A

Amps - Plugs and Receptacles 20 A

ANSI C-73

Application Environment Heavy-Duty Hospital Grade

At Rated Voltage 1 HP

Body Material Nylon

Clamp Nuts Zinc-Plated Steel

Color Brown

Color - Plugs and Receptacles Brown

Connection Orientation Straight

Contact Material Brass

Country of Origin (subject to change) Mexico

Cover Type No Cover

CSA C22.2 No. 42 File 152105

Current Limiting Full Rated Current

Current Rating 20 A

Description Smooth Face

Device Type Duplex Receptacle Outlet

Dielectric Voltage Withstands 2000V per UL498

Face Material Nylon

Face Plate Height 2.8 in

Face Plate Width 1.3 in

Feature 4 Smooth Face

Flammability Rated V-2 per UL94

GFCI No

Grade Hospital Grade Fed. Spec.

Ground Clips Brass-Plated

Grounding Grounded

Grounding Screw Brass 8-32

Hazardous Location Specification Not Applicable

Horsepower Rating 1 hp

Housing Color Brown

Housing Material Nylon

HP_ 1 hp

Item - Plugs and Receptacles Duplex Receptacle Outlet

Key Resistance Properties Standard Resistance

Line Contacts Brass Triple-Wipe

Material Nylon (Body and Face)

Maximum Operating Temperature 140 Degrees F

Maximum Wire Size 10 AWG

Minimum Operating Temperature -40 Degrees F

Minimum Wire Size 14 AWG

Mount Hole Center-to-Center Height 3.3 in

Mount Type Flush

NEMA WD-6

NEMA Configuration 5-20

NEMA Enclosure Rating Not Rated

NEMA Receptacle Configuration 5-20R

NEMA Receptacle Configuration - Plugs and Receptacles 5-20R

Number of Outlets 2

Number of Poles 2

Number of Poles & Wires 2 Pole / 3 Wire

Number of Wires 3

Operating Temperature -40ÃÂ°C to 60ÃÂ°C

Outlet Type - Plugs and Receptacles Duplex

Overall Depth 1.1 in

Package Quantity 1

Phase Single

Polarized Yes

Pole 2

Receptacle Type Duplex

Resistance Properties Not Applicable

Screw Terminal Torque 14-18 in-lbs

Series 8300-H

Standards ANSI C73, CSA C22.2 No. 42 File E152105, CSA Certified, NEMA WD-6, UL 498HG File E13399, UL Federal Specification WC-596 File E13399, UL Listed

Standards and Certifications UL/CSA

Strap Material Steel

Sub-Category Duplex Receptacles

Temperature Rise Max 30C after 250 cycles OL at 200 percent rated current

Terminal Accom. 14-10 AWG

Terminal ID Brass-Hot, Green-Ground, White-Neutral

Terminal Screws Brass 10-32

Termination Back or Side Wire

UL 94 Flammability Rating V-2

UL Fed Spec WC-596 File E13399

UL498HG File E13399

Voltage 125 VAC
