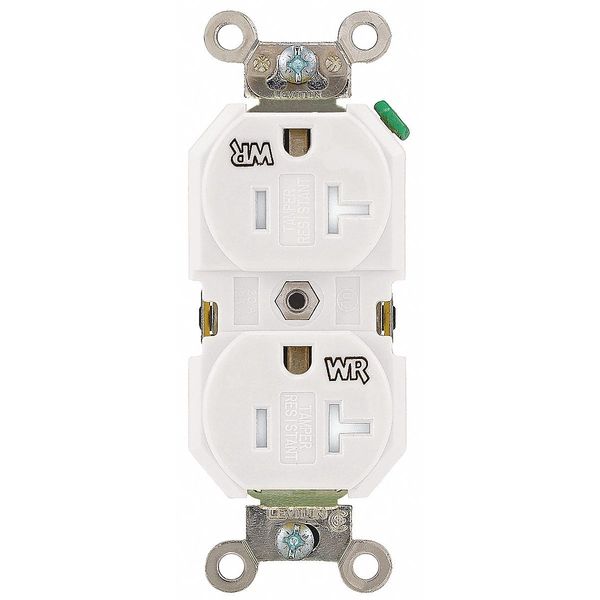

Receptacle

SKU
Brand Leviton
Categories
Description Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color White, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Tamper Resistant, Weather Resistant
graingerSKU: 792UV6, mscSKU: , zoro_no: G304393218, mongo_id: 65bbe92e22d7a989a993d695

Web Price

$13.61 / each

Qty

Minimum order: 10

Product Details

Additional Electrical Protection Standard Protection

Additional Electrical Protections Standard Protection

Amps - Plugs and Receptacles 20 A

ANSI C-73

Application Environment Heavy-Duty Industrial Grade

At Rated Voltage 1 HP

Body Material Nylon

Clamp Nuts Zinc-Plated Steel

Color White

Color - Plugs and Receptacles White

Connection Orientation Straight

Contact Material Brass

Country of Origin (subject to change) Mexico

Cover Type No Cover

CSA C22.2 No. 42 File 152105

Current Limiting Full Rated Current

Current Rating 20 A

Description Smooth Face

Device Type Duplex Receptacle Outlet

Dielectric Voltage Withstands 2000V per UL498

Face Material Nylon

Face Plate Height 2.8 in

Face Plate Width 1.3 in

Feature Weather and Tamper-Resistant|Smooth Face

GFCI No

Grade Federal Specification

Ground Clips Nickel-Plated

Grounding Grounded

Grounding Screw Nickel-Plated Brass

Hazardous Location Specification Not Applicable

Horsepower Rating 1 hp

Housing Color White

Housing Material Nylon

HP_ 1 hp

Includes Cover, Wallplate

Includes Mounting Hardware Yes

Item - Plugs and Receptacles Duplex Receptacle Outlet

Key Resistance Properties Tamper & Weather Resistant, Tamper Resistant, Weather Resistant

Line Contacts Nickel-Plated Brass Triple-Wipe .040 Thick

Market Industrial

Material Nylon (Body and Face)

Maximum Operating Temperature 140 Degrees F

Maximum Wire Size 10 AWG

Minimum Operating Temperature -40 Degrees F

Minimum Wire Size 14 AWG

Mount Hole Center-to-Center Height 3.3 in

Mount Type Flush

Mounting Screws Stainless Steel

NEMA WD-1 WD-6

NEMA Configuration 5-20

NEMA Enclosure Rating Not Rated

NEMA Receptacle Configuration 5-20R

NEMA Receptacle Configuration - Plugs and Receptacles 5-20R

Number of Outlets 2

Number of Poles 2

Number of Poles & Wires 2 Pole / 3 Wire

Number of Wires 3

Outlet Type - Plugs and Receptacles Duplex

Overall Depth 0.9 in

Package Quantity 1

Phase Single

Polarized Yes

Primary Resistance Properties Tamper Resistant - Weather Resistant - 20 A, Weather Resistant - Tamper Resistant - 20 A, Weather Resistant - Weather Resistant - 20 A

Receptacle Type Duplex

Resistance Properties Tamper Resistant, Weather Resistant

Screw Terminal Torque 14-18 in-lbs

Shutter Mechanism DelrinÃÂ® Acetal

Standards ANSI, CSA Certified, cULus Listed, Federal Specification, NOM-ANCE, RoHS Compliant, UL Listed

Strap Material Nickel Plated Brass

Sub-Category Duplex Receptacles

Tamper Resistant Yes

Temperature Rise Max 30C after 100 cycles OL at 150 percent rated current

Terminal Accom. 14-10 AWG

Terminal ID Brass-Hot, Green-Ground, Silver-Neutral

Terminal Screws Nickel-Plated Brass 10-32
