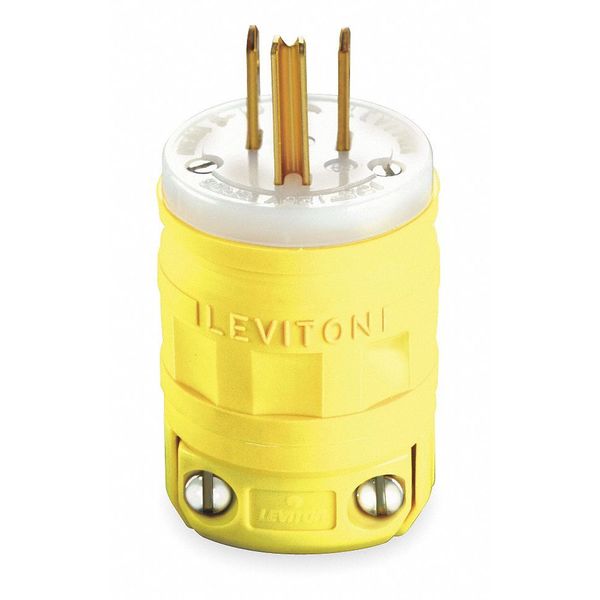

Straight Blade Plug

Straight Blade Plug

  • Leviton
  • Straight Blade Plug, Connection Orientation Straight, Current Rating 15 A, Grounding Grounded, Horsepower Rating 1/2 hp, Housing Color Yellow, IP Rating Not Rated, NEMA Plug Configuration 5-15P, Number of Blades 3, Number of Poles 2, Phase Single, Polarized Yes, Resistance Properties Shatter and Crack Resistant, Chemical Resistant, Moisture Resistant, UL 94 Flammability Rating V-2, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Style Standard

    graingerSKU: , mscSKU: , zoro_no: G404836653, mongo_id: 65bbe92e22d7a989a993d691

Web Price
$13.49 / each
Qty

Product Details

15 A
Steel, Zinc Plated
Brass
3 in
Santoprene TPV
Yellow
Straight
0.24 in to 0.655 in
United States
15 A
Withstands 2000V per UL498
Dry
Rated V-2 per UL 94
Dry
0.655 in
0.24 in
General Use
Industrial
Grounded
Not Applicable
1/2 hp
Yellow
Santoprene TPV
Nylon
Not Rated
Straight Blade Plug
Industrial
Santoprene TPV
140 Degrees F
12 AWG
-40 Degrees F
18 AWG
5-15
Not Rated
5-15P
5-15P
WD-6
3
2
3
-40°C to 60°C
3.83 in
1
Single
Yes
Shatter and Crack Resistant, Chemical Resistant, Moisture Resistant
No
Ratings and NEMA I.D. permanently marked on device
ANSI C73, CSA C22.2 No. 42 File LR-406, NEMA WD-6, NOM 057 Certified, RoHS Compliant, UL 498, UL Federal Specification WC-596 File E13393
Max 30C after 250 cycles OL at 200 percent rated current
Brass-Hot, Green-Ground, Silver-Neutral
Brass
V-2
125VAC
125V AC
Screw Terminals
18-12 AWG; 18-10 AWG
Standard
