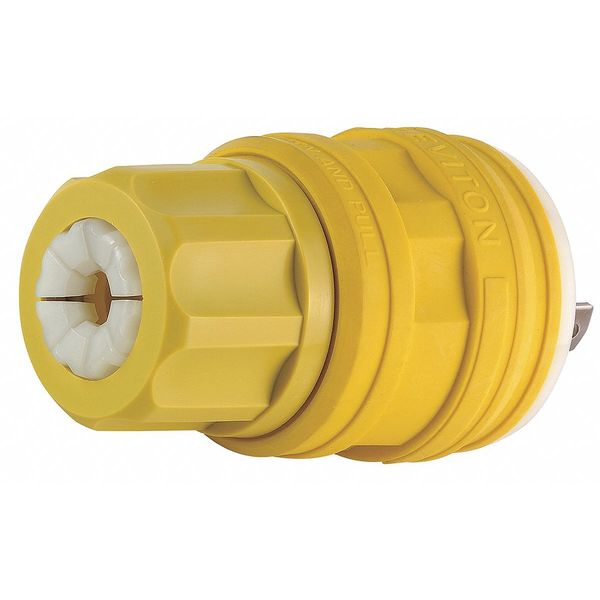

Straight Blade Plug

Straight Blade Plug

  • Leviton
  • Straight Blade Plug, Connection Orientation Straight, Current Rating 20 A, Grounding Grounded, Horsepower Rating 2 hp, Housing Color Yellow, IP Rating IP66, IP67, IP69K, NEMA Plug Configuration 6-20P, Number of Blades 3, Number of Poles 2, Phase Single, Polarized Yes, Resistance Properties Watertight, UL 94 Flammability Rating V-2, Voltage Rating 250V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, Face Diameter 1.5 in, For Maximum Cable Diameter 0.655 in

    graingerSKU: , mscSKU: 48436216, zoro_no: G104836601, mongo_id: 65bbea1022d7a989a9993909

Web Price
$33.49 / each
Qty

Product Details

20 A
Stainless Steel 300
Brass
2.71 in
EPTR Rubber
Yellow
Straight
.234-.687
0.375 in to 0.655 in
United States
20 A
Withstands 2000V per UL498
Wet
1.5 in
Rated V-2 per UL 94
Wet
0.655 in
0.375 in
General Use
Industrial
Grounded
Not Applicable
IP69K IP66, IP69K IP67, IP69K IP69K
2 hp
Yellow
EPTR Rubber
Nylon
IP69K
Straight Blade Plug
General Resistance
Industrial
EPTR Rubber
140 Degrees F
10 AWG
-40 Degrees F
18 AWG
6-20
6-20P
6-20P
WD-6
3
2
3
-40°C to 60°C
1
Single
Yes
Watertight
No
Ratings and NEMA I.D. permanently marked on device
ANSI C73, CSA C22.2 No. 42 File LR-406, NEMA WD-6, NOM 057 Certified, RoHS Compliant, UL 498
Max 30C after 250 cycles OL at 200 percent rated current
Brass-Hot, Green-Ground, Silver-Neutral
Electroless Nickel-coated Brass
12-14 in-lbs
V-2
250VAC
250V AC
Screw Terminals
18-10 AWG
Standard
