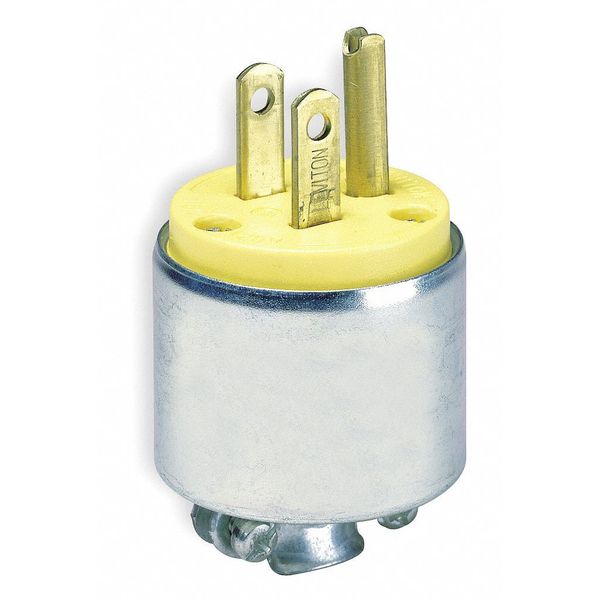

Straight Blade Plug

Straight Blade Plug

  • Leviton
  • Straight Blade Plug, Connection Orientation Straight, Current Rating 15 A, Grounding Grounded, Horsepower Rating 1/2 hp, Housing Color Yellow, IP Rating Not Rated, NEMA Plug Configuration 5-15P, Number of Blades 3, Number of Poles 2, Phase Single, Polarized No, UL 94 Flammability Rating V-2, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, Face Diameter 1.38 in, For Maximum Cable Diameter 0.655 in, For Minimum Cable Diameter 0.245 in, Grade General

    graingerSKU: , mscSKU: , zoro_no: G304836531, mongo_id: 65bbe6203aaddbd5a900c369

Web Price
$7.24 / each
Qty
Minimum order: 2

Product Details

15 A
Steel, Zinc Plated
Brass
1.89 in
PVC / Steel
Yellow
Straight
0.245 in to 0.655 in
Mexico
15 A
Withstands 2000V per UL498
1.38 in
Rated V-2 per UL 94
0.655 in
0.245 in
General
Grounded
1/2 hp
Yellow
PVC/Steel
Not Rated
Straight Blade Plug
General Use
PVC/Steel
140 Degrees F
12 AWG
-40 Degrees F
18 AWG
5-15
5-15P
5-15P
WD-6
3
2
3
-40°C to 60°C
1.55 in
1
Single
No
Ratings and NEMA I.D. permanently marked on device; Certified for current interrupting at full rated current
ANSI C73, CSA C22.2 No. 42 File LR-406, NEMA WD-6, NOM 057 Certified, RoHS Compliant, UL 498 File E13393
Max 30C after 50 cycles OL at 150 percent rated current
Brass-Hot, Green-Ground, Silver-Neutral
V-2
125VAC
125V AC
Screw Terminals
18-12 AWG
Standard
