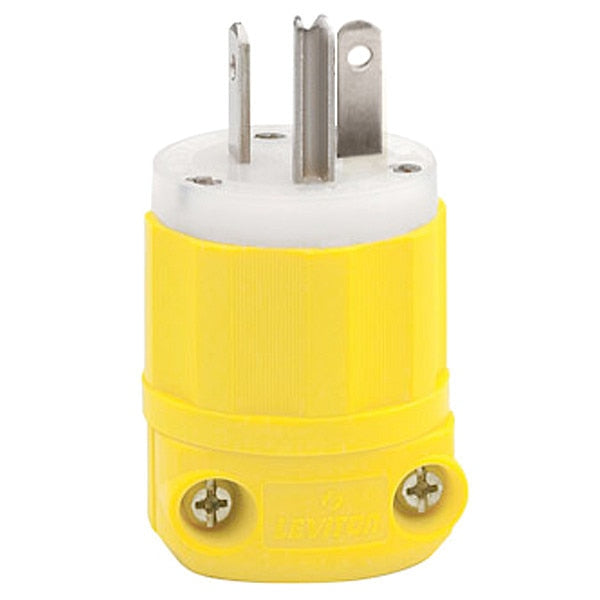

Straight Blade Plug

SKU
Brand Leviton
Categories
Description Straight Blade Plug, Connection Orientation Straight, Current Rating 20 A, Grounding Grounded, Horsepower Rating 1 hp, Housing Color White, Yellow, IP Rating Not Rated, NEMA Plug Configuration 5-20P, Number of Blades 3, Number of Poles 2, Phase Single, Polarized Yes, Resistance Properties Chemical Resistant, Corrosion Resistant, Impact Resistant, Moisture Resistant, Weather Resistant, UL 94 Flammability Rating V-2, Voltage Rating 125V AC, Wire Connection Type Screw Terminals
graingerSKU: 792TU9, mscSKU: , zoro_no: G604256091, mongo_id: 65bbe9e622d7a989a9985539

Web Price

$20.49 / each

Qty

Product Details

Amps - Plugs and Receptacles 20 A

Assembly Screws Stainless Steel 300

Blade Material Brass

Body Length 1.98 in

Body Material Super Tough ST801 Nylon

Clamp Insert Nylon

Color - Plugs and Receptacles White, Yellow

Connection Orientation Straight

Cord Size 0.218 in to 0.43 in

Cord-Clamp Nylon

Corrosion Resistant Yes

Country of Origin (subject to change) United States

Current Rating 20 A

Dielectric Strength Withstands 2000V per UL498

Environment Corrosive

Face Diameter 1.39 in

Face Material Nylon

Flammability Rated V-2 per UL 94

For Environment Corrosive

For Maximum Cable Diameter 0.43 in

For Minimum Cable Diameter 0.218 in

Grade General Use

Grade - Plugs and Receptacles Industrial

Grounding Grounded

Hazardous Location Specification Not Applicable

Horsepower Rating 1 hp

Housing Color White, Yellow

Housing Material Super Tough ST801 Nylon

Insulation Material Nylon

IP Rating Not Rated

Item - Plugs and Receptacles Straight Blade Plug

Market Industrial

Material Super Tough ST801 Nylon

Maximum Operating Temperature 140 Degrees F

Maximum Wire Size 10 AWG

Minimum Operating Temperature -40 Degrees F

Minimum Wire Size 18 AWG

NEMA Configuration 5-20

NEMA Enclosure Rating Not Rated

NEMA Plug Configuration 5-20P

NEMA Plug Configuration - Plugs and Receptacles 5-20P

NEMA Rating WD-6

Number of Blades 3

Number of Poles 2

Number of Wires 3

Operating Temp. -40ÃÂ°C to 60ÃÂ°C

Outside Diameter 1.53 in

Package Quantity 1

Phase Single

Polarized Yes

Resistance Properties Chemical Resistant, Corrosion Resistant, Impact Resistant, Moisture Resistant, Weather Resistant

Screw Terminal Torque 12-14 in-lbs

Shrouded No

Special Features Ratings and NEMA I.D. permanently marked on device; Certified for current interrupting at full rated current

Standards ANSI C73, CSA C22.2 No. 42 File LR-406, NEMA WD-6, NOM 057 Certified, RoHS Compliant, UL 498 File E13393, UL Federal Specification WC-596 File E13393

Temp. Rise Max 30C after 250 cycles OL at 200 percent rated current

Terminal ID Brass-Hot, Green-Ground, Silver-Neutral

Terminal Screws Nickel-Plated Brass 8-32

UL 94 Flammability Rating V-2

Voltage - Plugs and Receptacles 125VAC

Voltage Rating 125V AC

Wire Connection Type Screw Terminals

Wire Gauge 18-10 AWG

Wiring Style Standard
