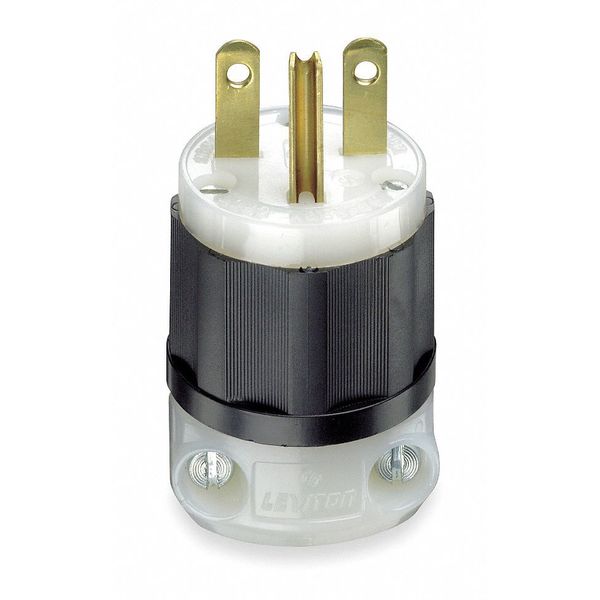

Straight Blade Plug

SKU
Brand Leviton
Categories
Description Straight Blade Plug, Connection Orientation Straight, Current Rating 15 A, Grounding Grounded, Horsepower Rating 2 hp, Housing Color Black, White, IP Rating Not Rated, NEMA Plug Configuration 6-15P, Number of Blades 3, Number of Poles 2, Phase Single, Polarized Yes, Resistance Properties Chemical Resistant, Impact Resistant, UV/Sunlight Resistant, UL 94 Flammability Rating V-2, Voltage Rating 250V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, Face Diameter 1.39 in
graingerSKU: , mscSKU: 74423427, zoro_no: G404836578, mongo_id: 65bbe7a09a749db82274a157

Web Price

$16.99 / each

Qty

Product Details

Amps - Plugs and Receptacles 15 A

Assembly Screws Steel, Zinc Plated

Blade Material Brass

Body Length 1.98 in

Body Material Impact Modified Nylon

Clamp Insert Nylon

Color - Plugs and Receptacles Black, White

Connection Orientation Straight

Cord Size 0.23 in to 0.685 in

Cord-Clamp Nylon

Country of Origin (subject to change) United States

Current Rating 15 A

Dielectric Strength Withstands 2000V per UL498

Environment Dry

Face Diameter 1.39 in

Flammability Rated HB or better UL94

For Environment Dry

For Maximum Cable Diameter 0.685 in

For Minimum Cable Diameter 0.23 in

Grade General Use

Grade - Plugs and Receptacles Industrial

Grounding Grounded

Hazardous Location Specification Not Applicable

Horsepower Rating 2 hp

Housing Color Black, White

Housing Material Impact Modified Nylon

Insulation Material Nylon

IP Rating Not Rated

Item - Plugs and Receptacles Straight Blade Plug

Market Industrial

Material Impact Modified Nylon

Maximum Operating Temperature 140 Degrees F

Maximum Wire Size 10 AWG

Minimum Operating Temperature -40 Degrees F

Minimum Wire Size 18 AWG

NEMA Configuration 6-15

NEMA Enclosure Rating Not Rated

NEMA Plug Configuration 6-15P

NEMA Plug Configuration - Plugs and Receptacles 6-15P

NEMA Rating WD-6

Number of Blades 3

Number of Poles 2

Number of Wires 3

Operating Temp. -40ÃÂ°C to 60ÃÂ°C

Outside Diameter 1.53 in

Package Quantity 1

Phase Single

Polarized Yes

Resistance Properties Chemical Resistant, Impact Resistant, UV/Sunlight Resistant

Shrouded No

Special Features Chemical Resistant, Resists Impact, Rough Use, Sunlight

Standards ANSI C73, CSA C22.2 No. 42 File LR-406, NEMA WD-6, NOM 057 Certified, RoHS Compliant, UL 498 File E13399, UL Federal Specification WC-596 File E13393

Temp. Rise Max 30C after 250 cycles OL at 200 percent rated current

Terminal ID Brass-Hot, Green-Ground, Silver-Neutral

Terminal Screws Brass

Torque Range 10-14 in-lbs

UL 94 Flammability Rating V-2

Voltage - Plugs and Receptacles 250VAC

Voltage Rating 250V AC

Wire Connection Type Screw Terminals

Wire Gauge 18-10 AWG

Wiring Style Standard
