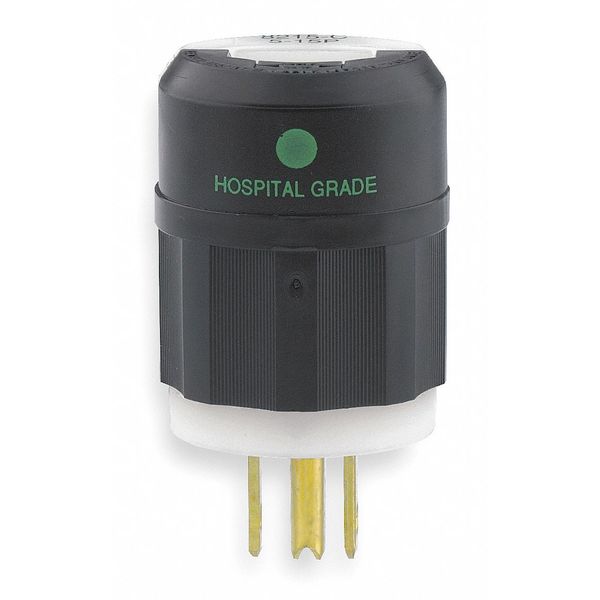

Straight Blade Plug

SKU
Brand Leviton
Categories
Description Straight Blade Plug, Connection Orientation Straight, Current Rating 15 A, Grounding Grounded, Horsepower Rating 1/2 hp, Housing Color Black, White, IP Rating Not Rated, NEMA Plug Configuration 5-15P, Number of Blades 3, Number of Poles 2, Phase Single, Polarized Yes, Resistance Properties Chemical Resistant, Corrosion Resistant, Impact Resistant, Moisture Resistant, Weather Resistant, UL 94 Flammability Rating V-2, Voltage Rating 125V AC, Wire Connection Type Screw Terminals

Web Price

$17.11 / each

Qty

Product Details

Amps - Plugs and Receptacles 15 A

Blade Material Brass

Color - Plugs and Receptacles Black, White

Connection Orientation Straight

Cord Size 0.23 in to 0.685 in

Country of Origin (subject to change) United States

Current Rating 15 A

For Environment Dry

For Maximum Cable Diameter 0.685 in

For Minimum Cable Diameter 0.23 in

Grade Hospital Grade

Grade - Plugs and Receptacles Hospital

Grounding Grounded

Hazardous Location Specification Not Applicable

Horsepower Rating 1/2 hp

Housing Color Black, White

Housing Material Impact Modified Nylon

Insulation Material Nylon

IP Rating Not Rated

Item - Plugs and Receptacles Straight Blade Plug

Market Industrial

Material Impact Modified Nylon

Maximum Operating Temperature 140 Degrees F

Maximum Wire Size 10 AWG

Minimum Operating Temperature -40 Degrees F

Minimum Wire Size 18 AWG

NEMA Configuration 5-15

NEMA Enclosure Rating Not Rated

NEMA Plug Configuration 5-15P

NEMA Plug Configuration - Plugs and Receptacles 5-15P

Number of Blades 3

Number of Poles 2

Number of Wires 3

Package Quantity 1

Phase Single

Polarized Yes

Power Indicating Lights Without Power Indicating Lights

Resistance Properties Chemical Resistant, Corrosion Resistant, Impact Resistant, Moisture Resistant, Weather Resistant

Shrouded No

Standards ANSI C73, CSA C22.2 No. 42 File LR-406, NEMA WD-6, NOM 057 Certified, RoHS Compliant, UL 498 File E13399, UL Federal Specification WC-596 File E13393

UL 94 Flammability Rating V-2

Voltage - Plugs and Receptacles 125VAC

Voltage Rating 125V AC

Wire Connection Type Screw Terminals

Wiring Style Standard
