Home / Fume Extractor, 55/115 CFM, dBA 74,230V, 9A

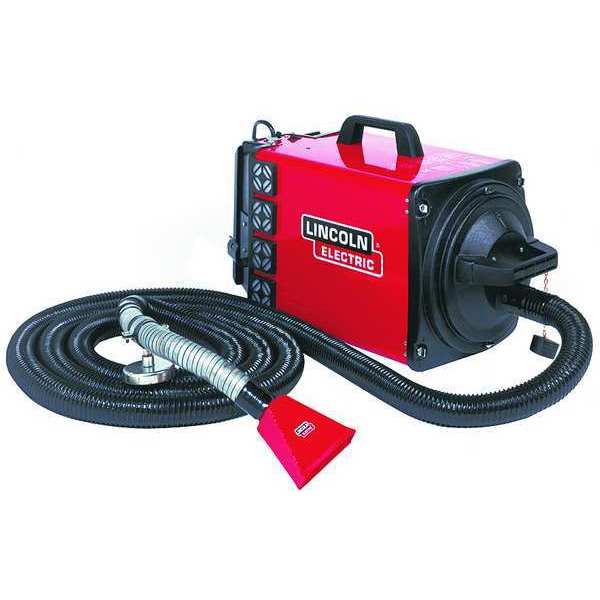

Fume Extractor, 55/115 CFM, dBA 74,230V, 9A

SKU
Brand Lincoln Electric
Categories
Description Portable Fume Extractor, Maximum Air Flow 115 cfm, Sound Level 74 dB, Filter Area 33 sq ft, Filter Type Cartridge Filter, Input Voltage 230V AC, Motor Horsepower (Maximum) 1 5/16 hp, Series X-Tractor, Compatible Filter Manufacturer Part Number KP2069-1, Current 9 A, Features Manually-Operated Filter Cleaning System, Quiet Operation, Simple to Configure, Two Fan Speeds, Filter Media 2.8 sq m (30 sq ft), Frequency 50 Hz, 60 Hz, Housing Depth 15.8 in, Housing Height 13.3 in
graingerSKU: 5GWP6, mscSKU: , zoro_no: G1305211, mongo_id: 65bbee24526e052139af0436

Web Price

$6,068.74 / each

Qty

Product Details

Air Flow (CFM) 55/115

Application Designed For The Removal And Filtration Of Welding Fumes

Compatible Filter Manufacturer Part Number KP2069-1

Country of Origin (subject to change) Norway

Current 9 A

Depth (In.) 15 3/4 in

Features Manually-Operated Filter Cleaning System, Quiet Operation, Simple to Configure, Two Fan Speeds

Filter Area 33 sq ft

Filter Media 2.8 sq m (30 sq ft)

Filter Type Cartridge Filter

Frequency 50 Hz, 60 Hz

Height (In.) 13 1/4 in

Housing Depth 15.8 in

Housing Dimensions 13.3 in H x 26.8 in W x 15.8 in D

Housing Height 13.3 in

Housing Width 26.8 in

Hz_ 50/60

Includes (2) Spare Sets of Motor Brushes 12 ft. (3.6M), Adapters:1-3/4 in (45 Mm) to 2 in (50 mm) 1-3/4 in (45 mm) to 1-1/2 in (38 mm), Flexible Hose - 16 ft. (5.0M) Long X 1-3/4 in (45Mm) I.D. Two Hose-To-Tube

Input (Amps) 9 A

Input Voltage 230V AC

Input Voltage (Nominal) 230V

Maximum Air Flow 115 cfm

Motor Horsepower (Maximum) 1 5/16 hp

Motor HP Two 1.3

Package Quantity 1

Phase Single

Power Cord Length 12 ft

Power Source Corded

Process Removal and Filtration of Welding Fume

Series X-Tractor
