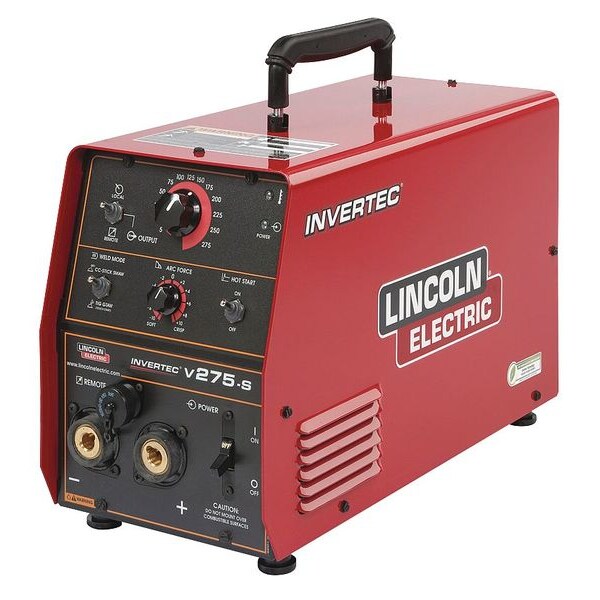

Multiprocess Welder, Invertec, Phase Single; Three , 28-31V , Gouging, Stick, TIG

SKU
Brand Lincoln Electric
Categories
Description Stick Welder, Input Frequency 50/60 Hz, Input Voltage 208V AC, 230V AC, 380V AC, 415V AC, 460V AC, 575V AC, Phase Single-/Three-Phase, Polarity DC, Model K2269-1, Stick Welding Maximum Output Current 275 A, TIG Welding Maximum Output Current 275 A, Cable Connection Type Dinse-Style, Remote Connection Type 6-Pin (Lincoln)

Web Price

$6,498.74 / each

Product Details

Amps AC 5-275ADC

Application Construction Sites, Fabrication Shops

brand-mfr model LINCOLN ELECTRIC - K4868-2

Cable Connection Type Dinse-Style

Color Red

Connector Type Dinse

Country of Origin (subject to change) United States

Effective Input Current 27/25/13/11 A Three-Phase), 34/33/17/14 A (Three-Phase), 38/37/19/16 A (Three-Phase), 49/48/26/21 A (Three-Phase), 63/62/33/27 A (Three-Phase), 68/67/38/31 A (Three-Phase)

Features Designed For Outdoor Use, Weather Resistant Features

Function Gouging, Stick, TIG

Hz_ 50/60

Includes (2) Twist Mate Cable Plugs (K852-70)

Input (Amps) 208/230/460/575

Input Frequency 50/60 Hz

Input Voltage 208V AC, 230V AC, 380V AC, 415V AC, 460V AC, 575V AC

Input Voltage (Nominal) 208V, 240V, 400V, 480V, 575V

Kit Includes Power Source Only

Max. Amperage Range (Stick) 150 A - 300 A

Model K2269-1

OCV N/A

Overall Depth 20.25 in

Overall Depth (In.) 20 1/4 in

Overall Height 13.6 in

Overall Height (In.) 13 3/5 in

Overall Width 9 in

Overall Width (In.) 9 in

Package Quantity 1

Phase Single-/Three-Phase

Plug Type Bare Leads

Polarity DC

Power Cord Included Yes

Power Cord Length 10 ft

Process Air Carbon Arc Cutting and Gouging (CAC-A), Stick Welding (SMAW), TIG Welding (GTAW)

Rated Output 275A/31V/35%, 250A/30V/60%, 200A/28V/100%

Rated Output at Duty Cycle (Stick) 200 A @ 100%, 250 A @ 60%, 275 A @ 35%

Remote Connection Type 6-Pin (Lincoln)

Series Invertec V275-S

Standards NEC

Stick Welding Maximum Output Current 275 A

Stick Welding Minimum Output Current 5A

Stick Welding Output @ Duty Cycle 200 A @ 28 V, 100% (1-Phase), 200 A @ 28 V, 100% (3-Phase), 250 A @ 30 V, 60% (1-Phase), 250 A @ 30 V, 60% (3-Phase), 275 A @ 29-31 V, 35% (1-Phase), 275 A @ 31 V, 35% (3-Phase)

TIG Arc Start Feature Lift Arc Start

TIG Welding Maximum Output Current 275 A

TIG Welding Minimum Output Current 5 A

TIG Welding Output @ Duty Cycle 200 A @ 28 V, 100% (1-Phase), 200 A @ 28 V, 100% (3-Phase), 250 A @ 30 V, 60% (1-Phase), 250 A @ 30 V, 60% (3-Phase), 275 A @ 29-31 V, 35% (1-Phase), 275 A @ 31 V, 35% (3-Phase)

Weight 54.5 lb

Welder Kit Type Power Source Only

Welder Type Power Source Only

Welding Mode CC

Welding Processes Air Carbon Arc Cutting and Gouging (CAC-A), Stick Welding (SMAW), TIG Welding (GTAW)
