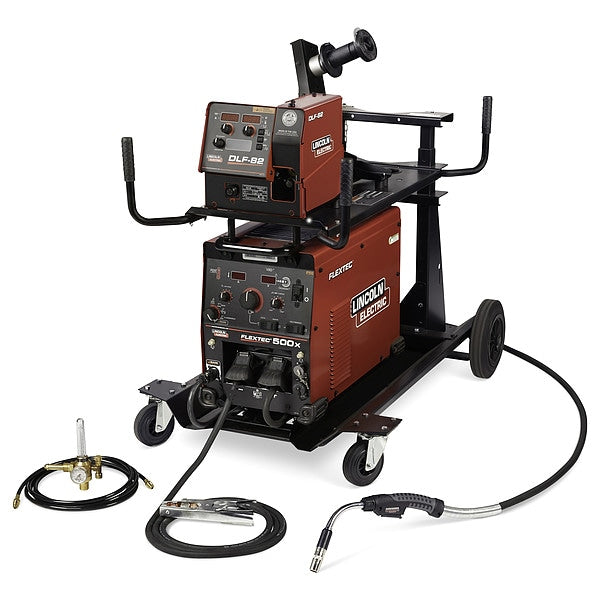

Multiprocess Welding Package

SKU
Brand Lincoln Electric
Categories
Description Multiprocess Welding Package, Series Flextec, Input Voltage 380/460/575V, Phase Three-Phase, Welding Mode CC/CV, Polarity AC, Input Frequency 50/60 Hz, Welding Processes MIG Welding, For Wire Type Cored Wire, Solid Wire
graingerSKU: , mscSKU: , zoro_no: G210081070, mongo_id: 65bbe6af3aaddbd5a9048541

Web Price

$20,199.99 / each

Qty

Product Details

Amperage Range 30 - 500 Amps

Application General Fabrication

Color Black, Red

Country of Origin (subject to change) United States

Enhanced Process Flux-Cored Gas-Shielded (FCAW-G), Flux-Cored Self-Shielded (FCAW-S), MIG (GMAW), Pulsed MIG (GMAW-P)

Features Fully Assembled, Synergic Weld Modes One Knob Control Set Higher Wire Feed Speeds for Thicker Materials and Lower Wire Feed Speeds for Thinner Materials Voltage is Automatically Adjusted

For Material Type Aluminum, Metal Core, Stainless Steel, Steel

For Maximum Material Thickness 1/2 in (Aluminum), 5/8 in (Stainless), 5/8 in (Steel)

For Minimum Material Thickness 1/8 in (Aluminum), 20 Ga (Stainless), 20 Ga (Steel)

For Wire Type Cored Wire, Solid Wire

Includes 355-2Ar-58010 Flowmeter Regulator Shielding Gas Kit, Cart, DLF-82 Bench Model (with Gun), DLF-Feeder Cart Mounting Bracket, Flextec(R) 500X Locking Foot Kit, Flextec(R) 500X Multi-Process Welder, Lug to Lug (3/0, 600A, 60%)10 ft (3 m) Weld Power Cable

Input Frequency 50/60 Hz

Input Voltage 380/460/575V

Maximum Wire Diameter 1/16 (Aluminum) (Synergic CV), 1/16 (Aluminum) (Synergic Pulsed), 1/16 (Metal Core) (Synergic CV), 1/16 (Metal Core) (Synergic Pulsed), 1/16 (Stainless Steel) (Synergic Pulsed), 1/16 (Steel) (Synergic CV), 1/16 (Steel) (Synergic Pulsed), 1/16(Stainless Steel) (Synergic CV)

Maximum Wire Feed Speed 800 in/min

MIG Welding Maximum Output Current 500 A

MIG Welding Minimum Output Current 5 A

MIG Welding Output @ Duty Cycle 500 A, 60%

Minimum Wire Diameter .03 (Stainless Steel) (Synergic CV), .03 (Steel) (Synergic CV), .035 (Aluminum) (Synergic CV), .035 (Aluminum) (Synergic Pulsed), .035 (Stainless Steel) (Synergic Pulsed), .035 (Steel) (Synergic Pulsed), .045 (Metal Core) (Synergic CV), .045 (Metal Core) (Synergic Pulsed)

Minimum Wire Feed Speed 50 in/min

Model Flextec 500

Overall Depth 27.5 in

Overall Height 40 in

Overall Width 14 in

Package Quantity 1

Phase Three-Phase

Plug Type Input Plug not Included

Polarity AC

Power Cord Included Yes

Power Cord Length 10 ft

Remote Connection Type 5-Pin (Lincoln)
