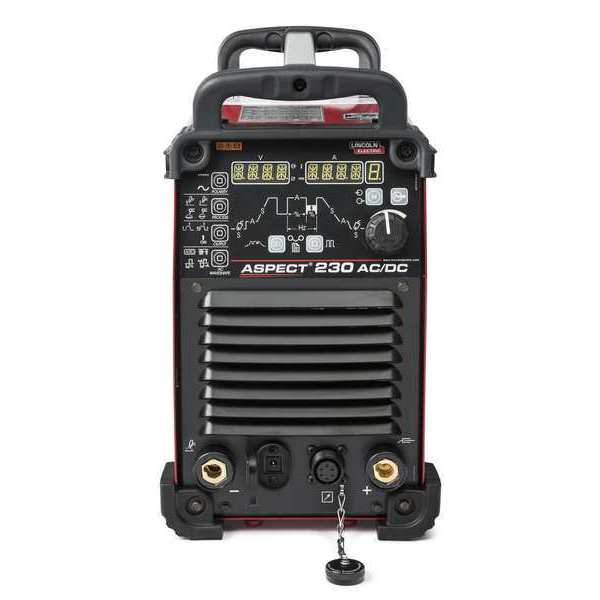

TIG Welder, Aspect 230 AC/DC Series, 120 V, 208 V, 230 V, 460 V

SKU
Brand Lincoln Electric
Categories
Description TIG Welder, Input Frequency 50/60 Hz, Max. Input Current 34 A @ 120VAC, Phase Single-/Three-Phase, Polarity AC/DC, Series Aspect 230 AC/DC, Stick Welding Maximum Output Current 230 A, Stick Welding Minimum Output Current 2 A

Web Price

$15,624.99 / each

Qty

Product Details

Amperage Range 2 to 230 A

Application Automotive, Brewery, Construction, Distillery, General Fabrication, Maintenance and Repair, Marine Applications, Marine Fabrication and Repair, Oil and Gas, Pharmaceutical Equipment, Power Generation, Power Plants, Repair Welding, Shipbuilding

brand-mfr model LINCOLN ELECTRIC - K4342-1

Color Red

Country of Origin (subject to change) United States

Features Exceptional Arc Response and Stability, Highly Customizable TIG Machine, Portable, Lightweight, and Easy to Transport

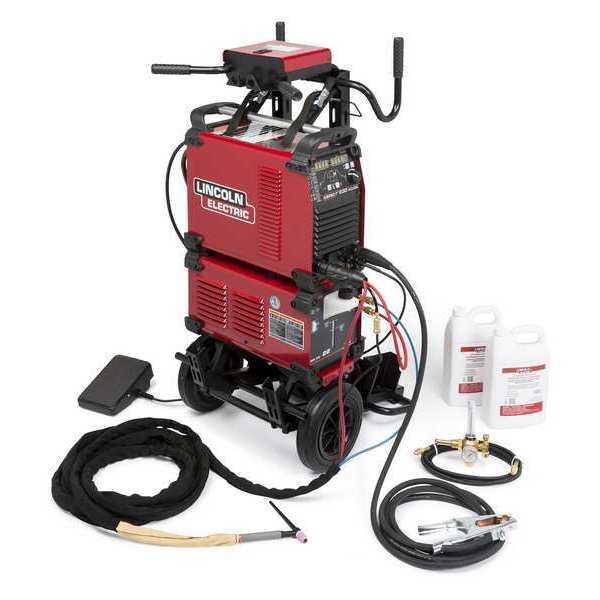

Includes Cool Arc(R) 22, Foot Pedal, Gas Lens Kit for PTW-20, Gas Regulator, Ground Clamp w/15 ft (4.6) Cable, Low Conductivity Coolant, Torch Twist Mate(TM) Connector, Two Wheeled Cart, Water Cooled TIG Torch PTW-20 250A, 25 ft (7.6 m), Water Cooled TIG Torch Quick Connect Fitting (Qty. 2), Zippered Cable Cover, 25 ft (7.6 m)

Input Frequency 50/60 Hz

Input Voltage 120 V, 208 V, 230 V, 460 V

Input Voltage (Nominal) 120V, 208V, 240V, 480V

Kit Includes Coolant, Flow Gauge/Regulator & Gas Hose, Foot Control, Running Gear, TIG Torch, Water Cooler, Work Cable with Clamp

Max. Amperage Range (TIG) 150 A - 300 A

Max. Input Current 34 A @ 120VAC

Model K4342-1

Overall Depth 24 in

Overall Height 46.5 in

Overall Width 22 in

Package Quantity 1

Phase Single-/Three-Phase

Plug Type Bare Leads

Polarity AC/DC

Power Cord Included Yes

Power Cord Length 10 ft

Process Stick Welding (SMAW), TIG Welding (GTAW)

Pulse Frequency 0.1 to 2000 pulses/second

Rated Output at Duty Cycle (TIG) 110 A @ 100%, 125 A @ 60%, 150 A @ 35%, 160 A @ 100%, 190 A @ 60%, 230 A @ 35%

Remote Connection Type 6-Pin (Lincoln)

Remote Control Foot Control Included

Series Aspect 230 AC/DC

Stick Welding Maximum Output Current 230 A

Stick Welding Minimum Output Current 2 A

Stick Welding Output @ Duty Cycle 110 A @ 14.4 V, 100% (Single-Phase, 120 V), 125 A @ 15 V, 60% (Single-Phase, 120 V), 150 A @ 16 V, 35% (Single-Phase, 120 V), 160 A @ 16.4 V, 100% (Single/Three-Phase, 208-480 V), 190 A @ 17.6 V, 60% (Single/Three-Phase, 208-480 V), 230 A @ 19.2 V, 35% (Single/Three-Phase, 208-480 V)

TIG Arc Start Feature High Frequency Start, Lift Arc Start

TIG Welding Maximum Output Current 150 A

TIG Welding Minimum Output Current 2 A

TIG Welding Output @ Duty Cycle 110 A @ 14.4 V, 100% (Single-Phase, 120 V), 125 A @ 15 V, 60% (Single-Phase, 120 V), 150 A @ 16 V, 35% (Single-Phase, 120 V), 160 A @ 16.4 V, 100% (Single/Three-Phase, 208-480 V), 190 A @ 17.6 V, 60% (Single/Three-Phase, 208-480 V), 230 A @ 19.2 V, 35% (Single/Three-Phase, 208-480 V)

Weight 212 lb

Welder Kit Type TIG Package w/Foot Control & Water Cooler

Welding Mode CC

Welding Processes Stick Welding (SMAW), TIG Welding (GTAW)
